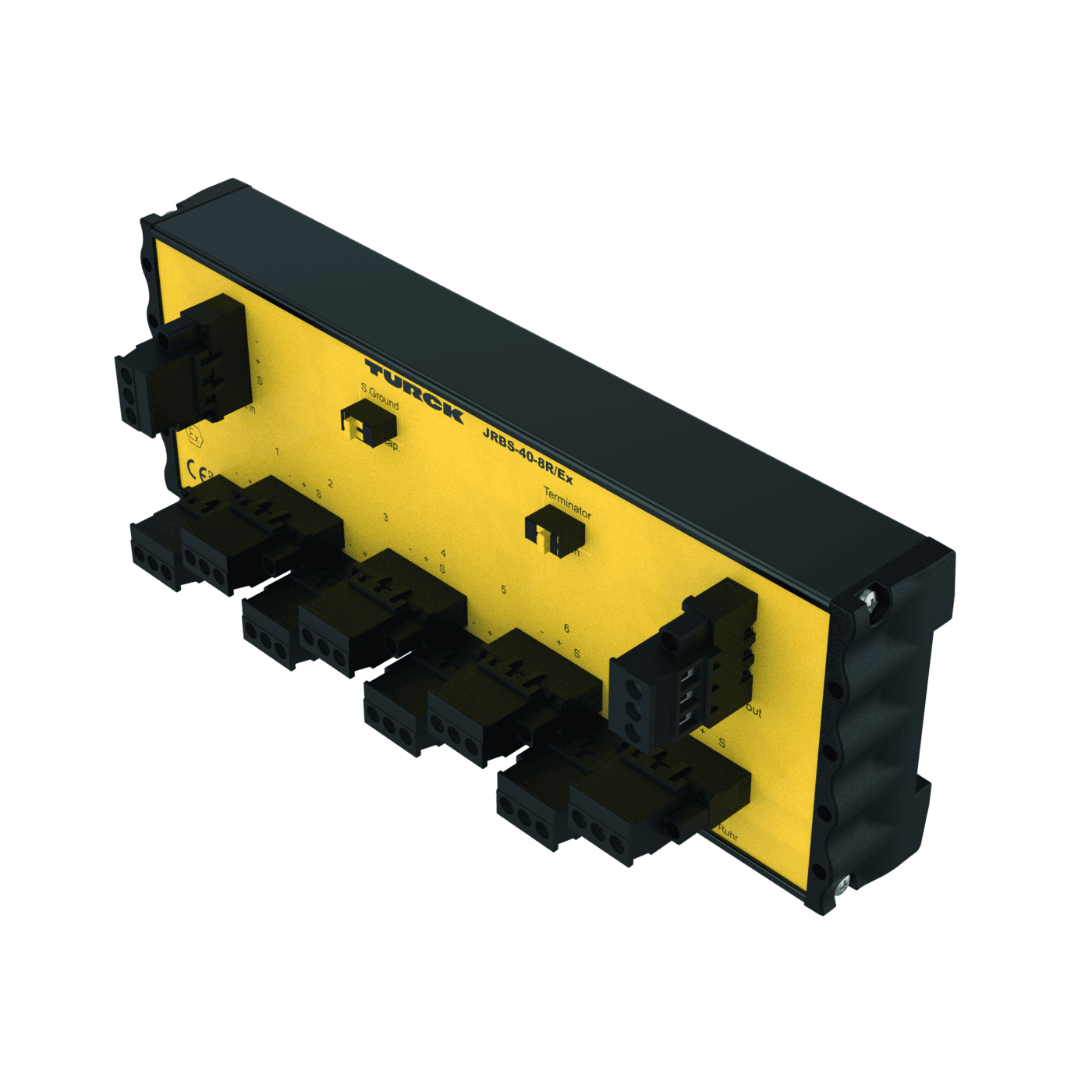

IP20 Junction Box, 8-Channel FOUNDATION Fieldbus and PROFIBUS-PA

JRBS-40-8R/EX

Order ID no. 6611458

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Application: Data
Approvals: ATEX, Ex-Approval
Connection technology signal: Screw terminal
Device type: Passive fieldbus junction box

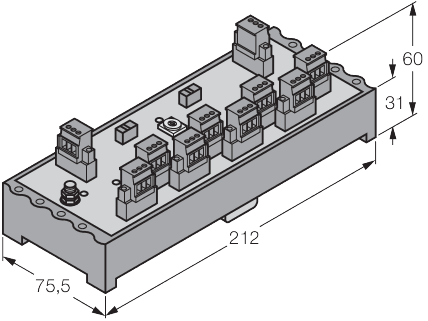

Dimensions: 31 mm x 212 mm x 75,5 mm
Electrical connection: Removable terminal block, reverse polarity protected, screw connection
Housing material: Aluminium
Installation area: non-Ex, zone 1, zone 2
Network protocol: FOUNDATION fieldbus, PROFIBUS-PA
Number of channels: 8
Protection class: IP20
