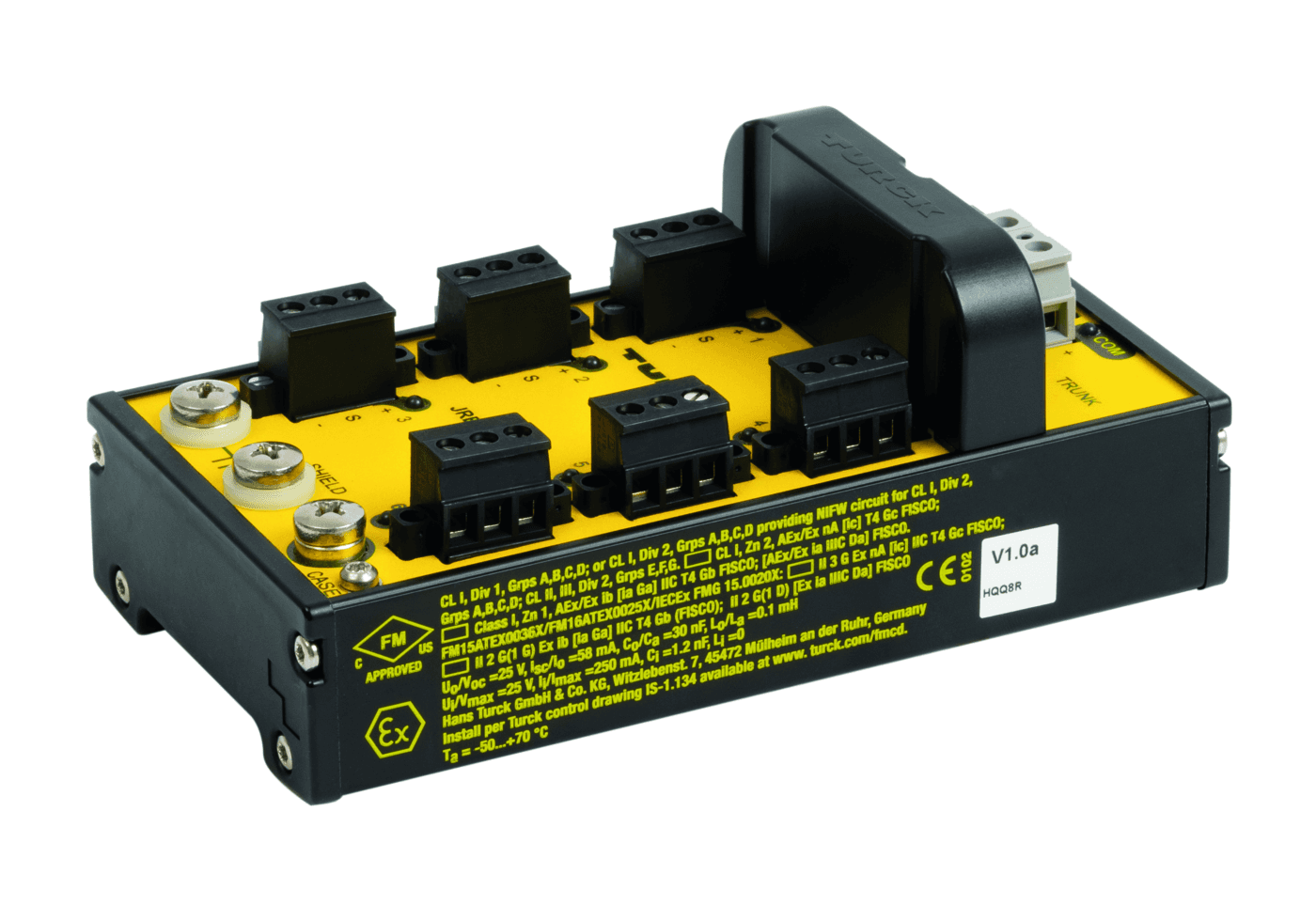

IP20 Junction Box with Short-Circuit Protection, 6-Channel FOUNDATION Fieldbus and PROFIBUS-PA

JRBS-40DC-6RV

Order ID no. 6611833

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -50
Approvals: ATEX, Ex-Approval, FM, IECEx
Device type: Active fieldbus junction box
Dimensions: 75,5 mm x 140,8 mm x 49 mm
Electrical connection: Removable terminal block, reverse polarity protected, screw connection
Housing material: Aluminium
Network protocol: FOUNDATION fieldbus, PROFIBUS-PA
Number of channels: 6
Protection class: IP20
