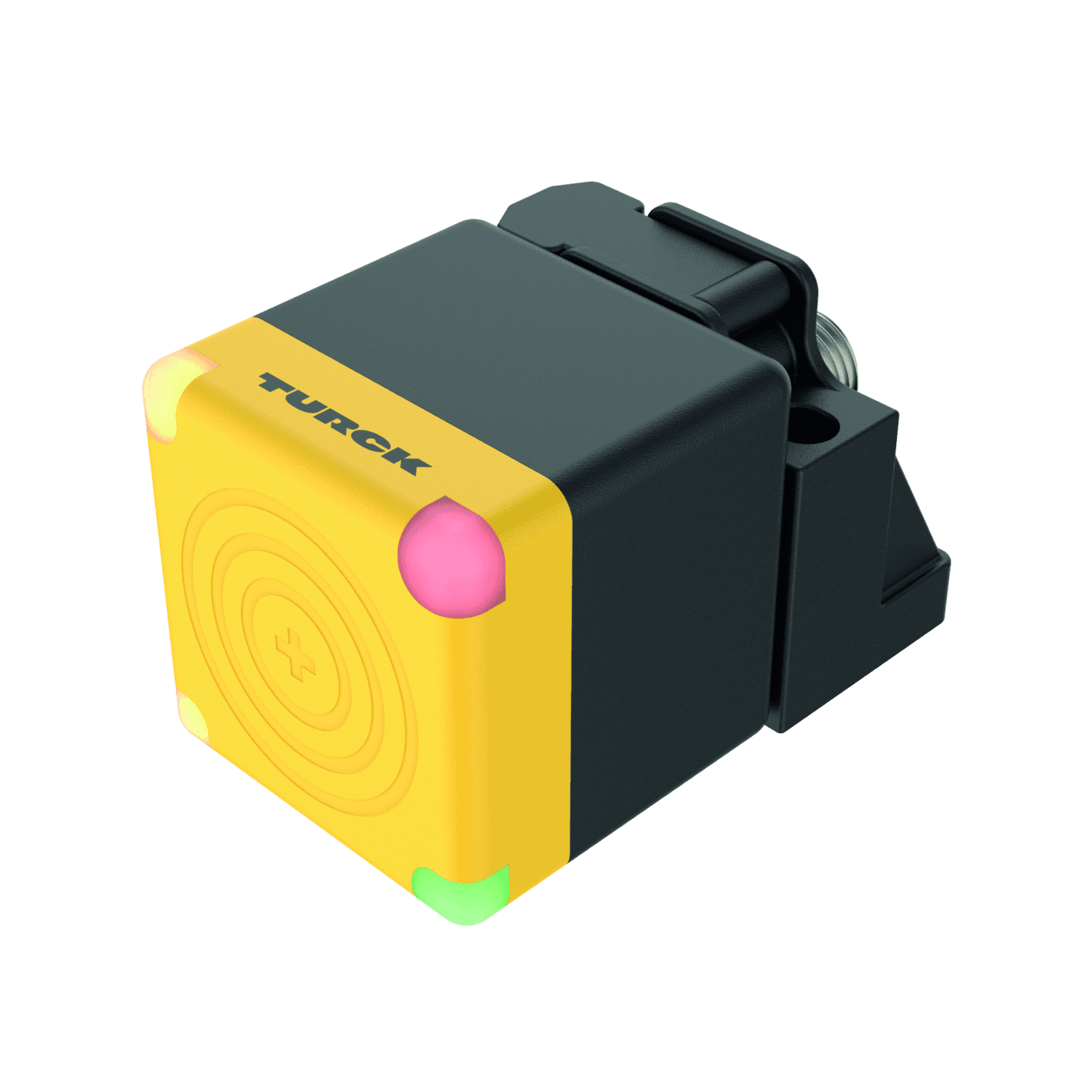

HF Read/Write Head

TN-Q40-IOL2-H1141

Order ID no. 100012163

Ambient temperature max. (°C): 80
Ambient temperature min. (°C): -25
Approvals: CE, cULus, UKCA
Connector type: M12 x 1
Design: Rectangular

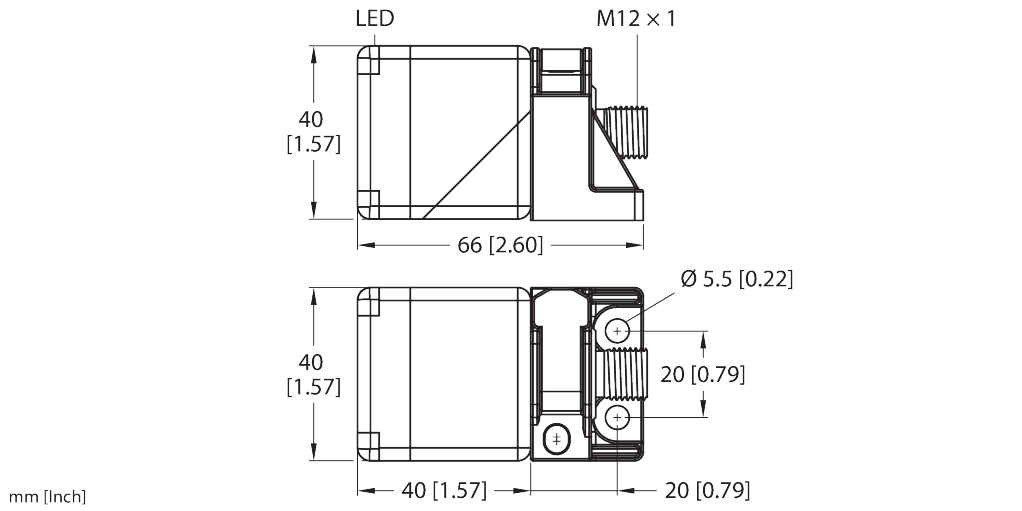

Dimensions: 66 mm x 40 mm x 40 mm
Electrical connection: Connector
Housing material: Plastic
Housing quality: PBT
Mounting conditions: Non-flush
Network protocol: IO-Link
Operating voltage: DC
Output function: 2 x PNP, IO-Link, SIO Mode
Protection class: IP68, IP69K
Quality active face: PBT
Radio approvals (HF): EU/RED: Europe, FCC: USA, IC: Canada, MIC: Japan, UK/SI 2017/1206: United Kingdom
Radio communication and protocol standards: ISO 15693, NFC Type 5
Switching element function: Read/Write
Technology: HF RFID
