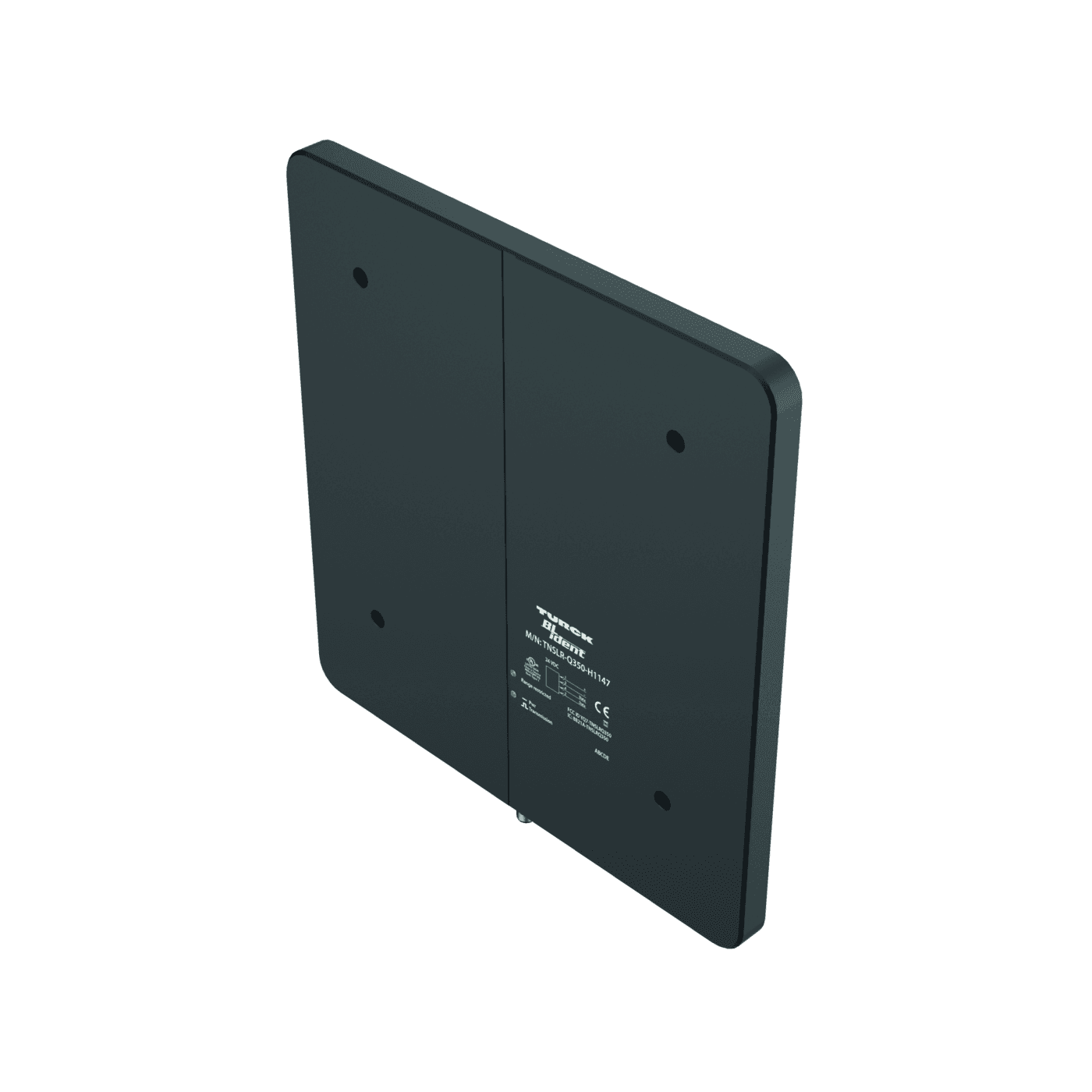

HF Read/Write Head

TNSLR-Q350-H1147

Order ID no. 7030454

In Stock

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: CE, UKCA, UL
Connector type: M12 x 1
Design: Rectangular
Dimensions: 370 mm x 350 mm x 20 mm
Housing material: Plastic
Housing quality: PBT-GF30-V0
Housing surface: Black
Mounting conditions: Non-flush
Network protocol: Connection to RFID interface
Operating voltage: DC
Protection class: IP67
Radio approvals (HF): EU/RED: Europe, FCC: USA, IC: Canada, KC: South Korea, RCM: Australia/New Zealand, UK/SI 2017/1206: United Kingdom
Radio communication and protocol standards: ISO 15693, NFC Type 5
Read/Write distance max. (mm): 794
Switching element function: Read/Write
Technology: HF RFID
