IMX12-FI01-2SF-2I-C0/24VDC/CC | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

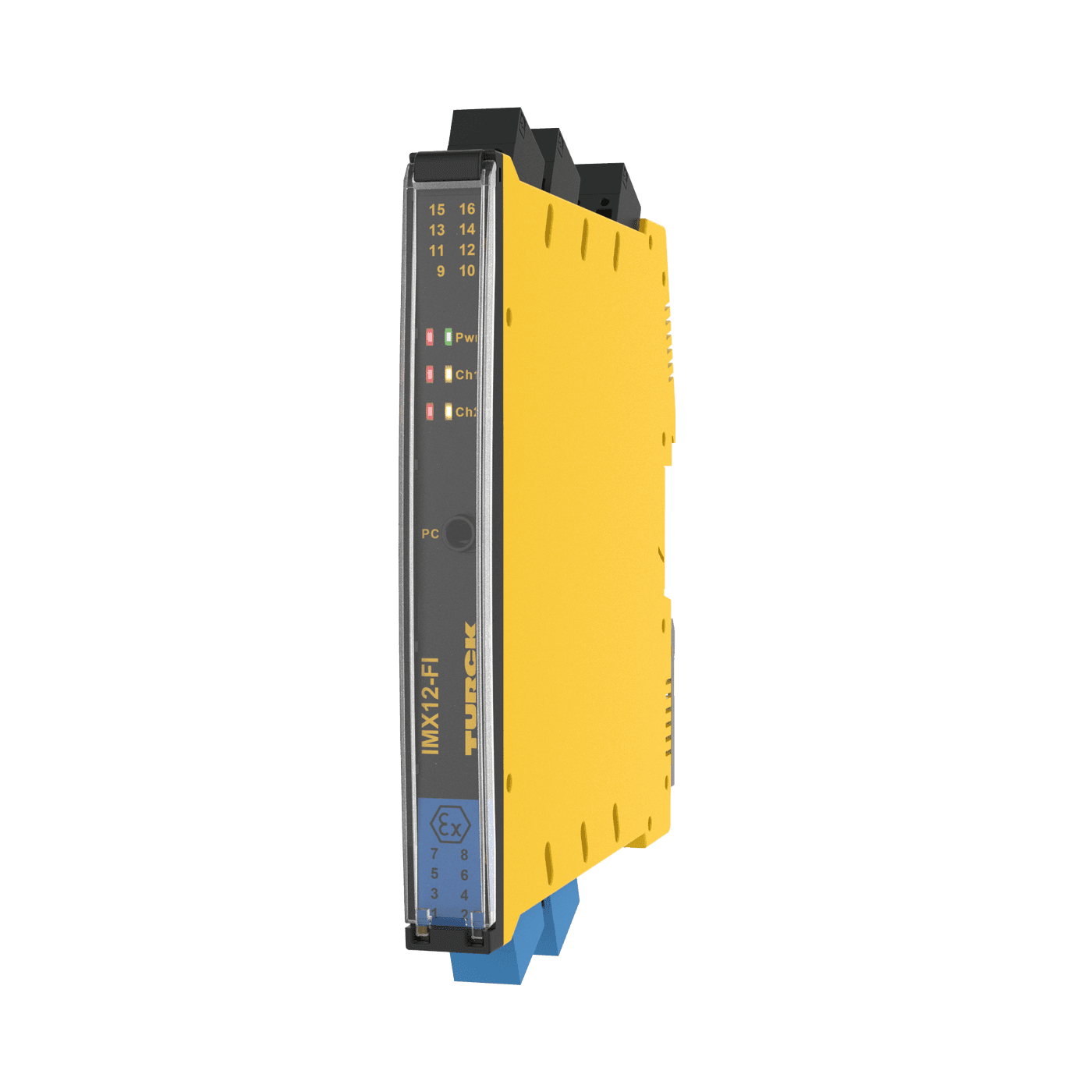

Frequency Transducer/Pulse Counter
IMX12-FI01-2SF-2I-C0/24VDC/CC
Order ID no. 7580211
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Approvals
ATEX, IECEx, INMETRO, TR CU
Current output
In mA
Dimensions
120 mm x 12,5 mm x 128 mm
Electrical connection
Removable spring-type terminals, 2-pin
Ex version
yes
Functional safety (SIL/PL)
SIL2
Housing material
Plastic
Housing quality
Polycarbonate/ABS
Nominal voltage
24 VDC
Number of channels
2
Power supply
24 VDC
Protection class
IP20
Signal type
Frequency input
Key Features
Number of channels
2
Signal type
Frequency input
Nominal voltage
24 VDC
In Stock
Price Group
D3
List Price
372,05 €
Item Total
372,05 €
