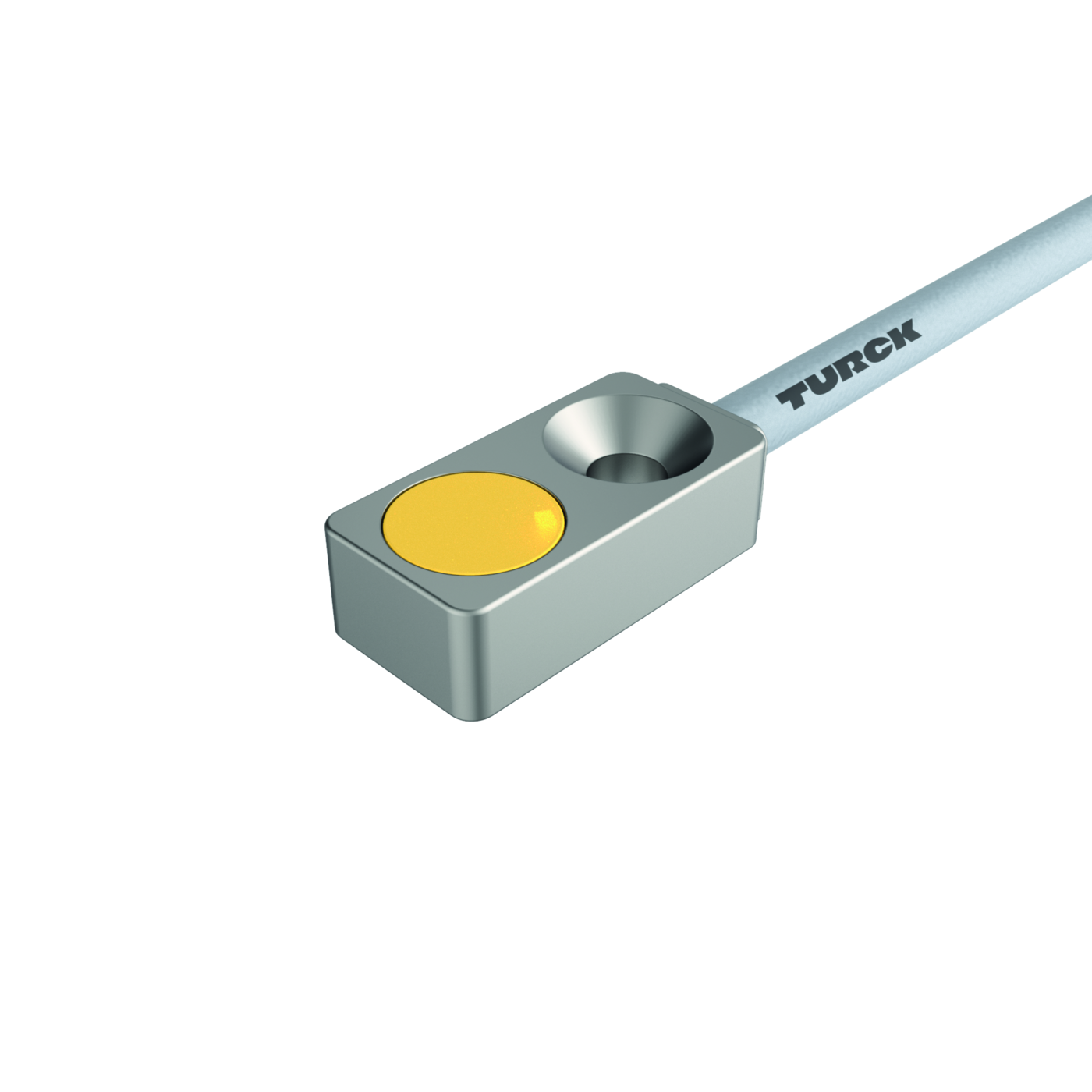

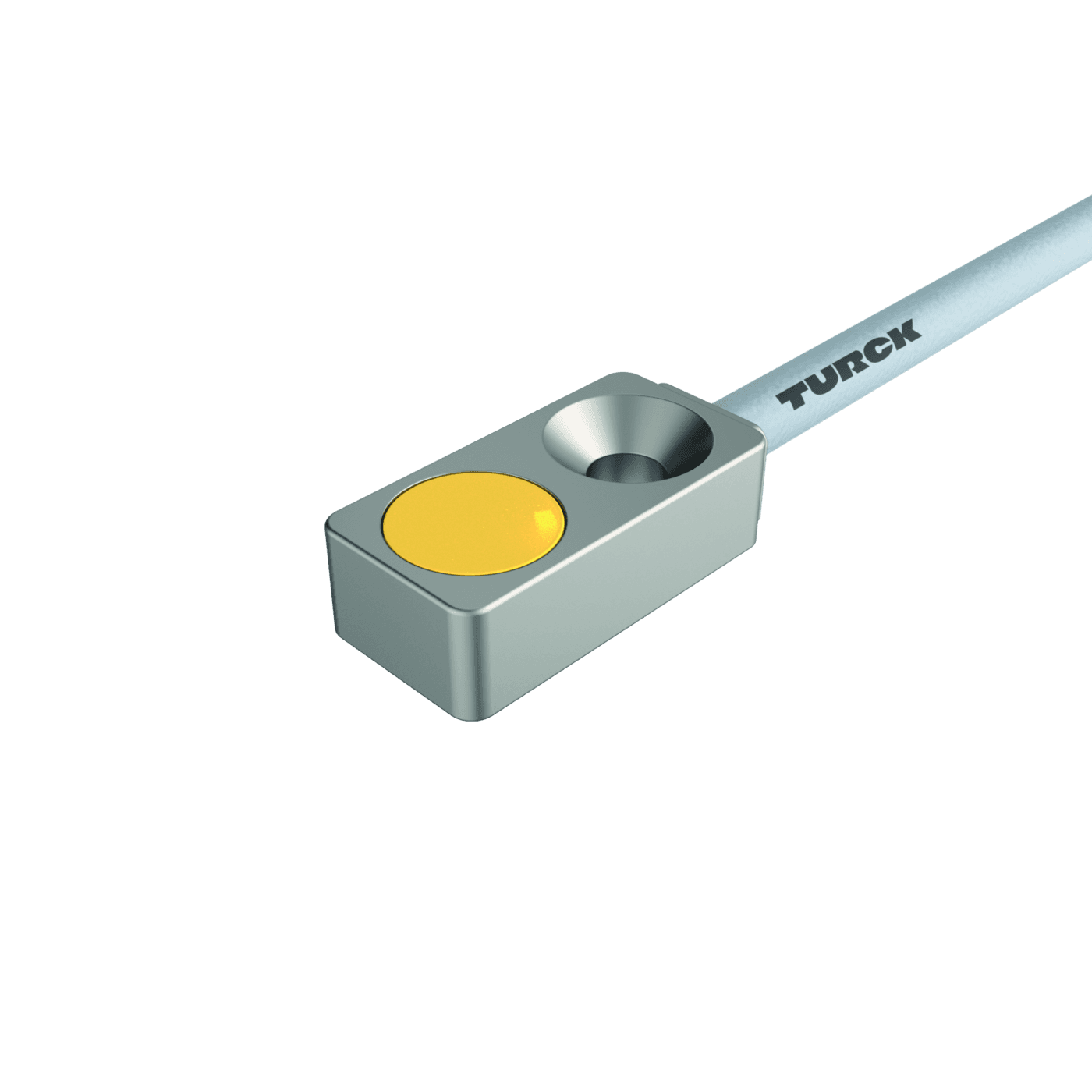

Inductive Sensor
BI2-Q4.7-AN6X 7M
Order ID no. 100003144
In Stock
Price Group
E1
List Price
€85.03
home
Turck-Shop
Others
BI2-Q4.7-AN6X 7M
Technical Data
Base unit
PCE
EAN/UPC code
4047101475845
Gross weight
86
Height
40
Length
200
Net weight
86
Dimension unit
MMT
Weight unit
GRM
Volume
1
Volume unit
CMQ
Width
150
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
0
Cable color
Gray
Cable length (m)
7
Electrical connection
Cable
Design
Rectangular

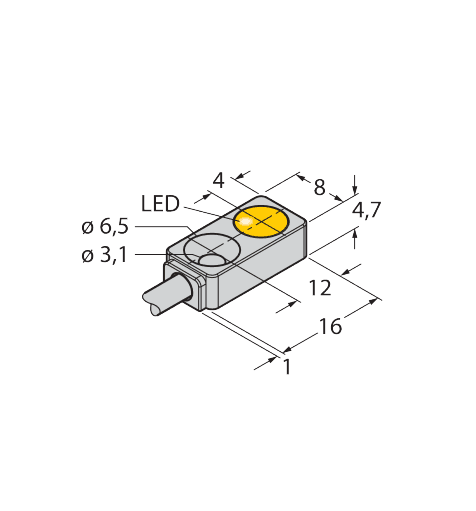

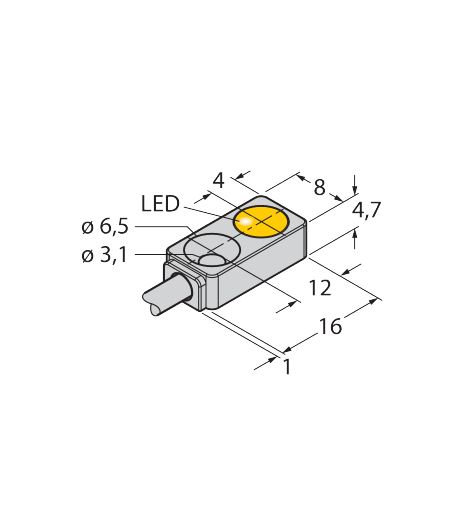

Dimensions
16 mm x 8 mm x 4,7 mm
Housing material
Metal
Housing quality
GD-ZnAl
Mounting conditions
Flush
Operating voltage
DC
Output function
NPN
Protection class
IP67
Quality active face
PA12
Rated switching distance (mm)
2
Switching element function
NO contact
Switching frequency (kHz)
1
