Inductive Sensor

NI12U-GT18-ADZ30X2-B3331

Order ID no. 4281423

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Connector type: 1/2″

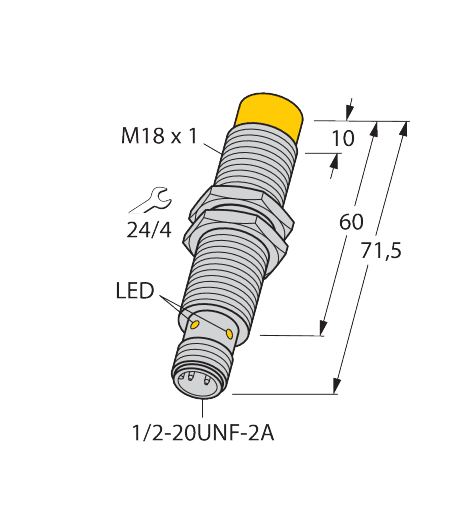

Construction size: ⌀ 18 mm
Design: Threaded barrel
Electrical connection: Connector
Housing material: Metal
Housing quality: CuZn
Housing surface: PTFE-coated
Mounting conditions: Non-flush
Operating voltage: AC/DC
Output function: 2-wire
Protection class: IP68
Quality active face: PA12-GF30
Rated switching distance (mm): 12
Special features: Factor 1, PTFE-coated, Resistant to magnetic fields, uprox+
Switching element function: NO contact
Switching frequency (kHz): 0.01
