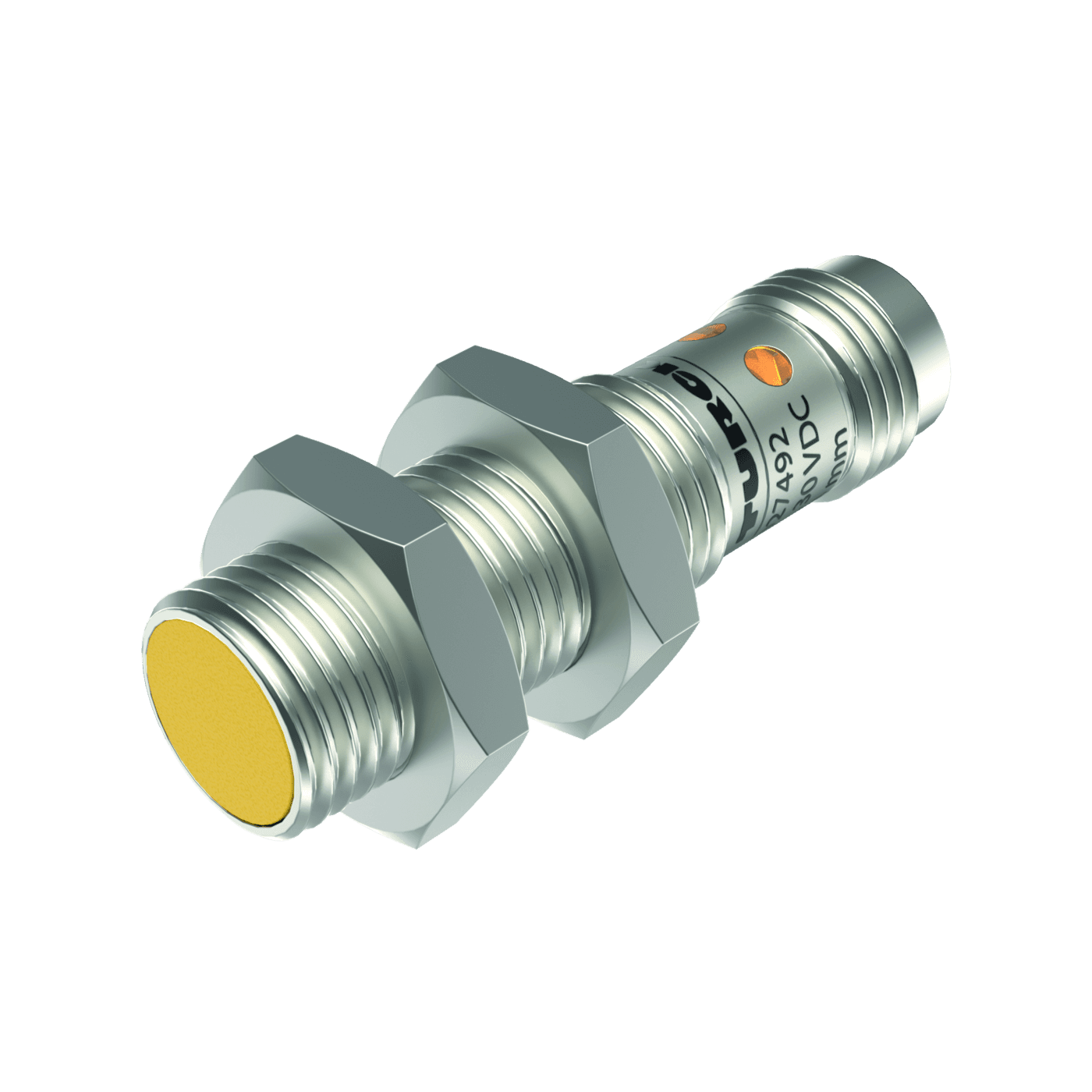

Capacitive Sensor
BCT4-M12-IOL-H1141
Order ID no. 100027492
In Stock
Price Group
E1
List Price
144,54 €
Item Total
144,54 €
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Communication protocol
IO-Link
Connector type
M12 x 1
Construction size
⌀ 12 mm
Design
Threaded barrel

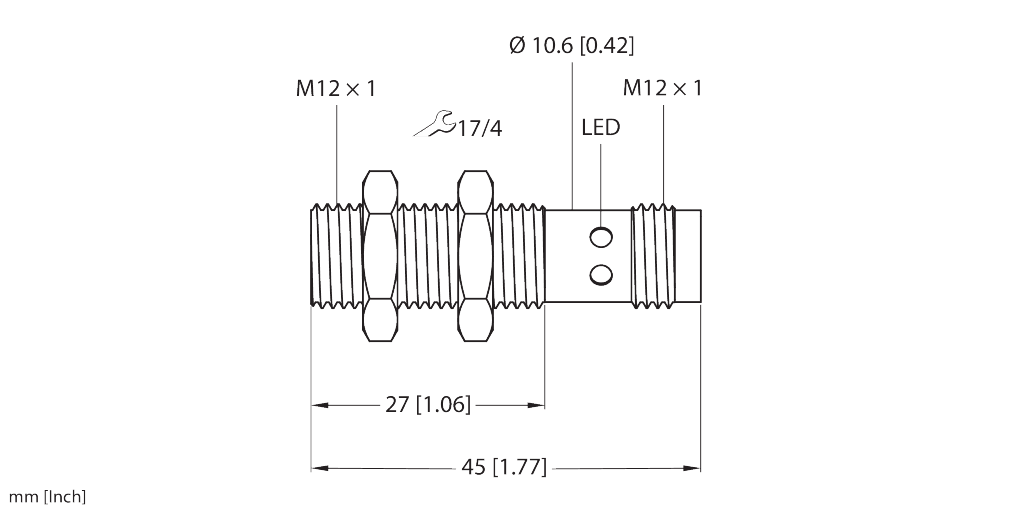

Dimensions
45 mm
Electrical connection
Connector
Function
Level detection
Housing material
Metal
Housing quality
Nickel-plated brass
Measuring principle
Capacitive
Media temperature max.
70
Media temperature min. (°C)
-25
Medium
Bulk goods, liquids
Mounting conditions
Flush/Non-flush
Output function
PNP/NPN
Protection class
IP67
Quality active face
PBT
Rated switching distance (mm)
4
Switching element function
NO/NC programmable
Switching frequency (kHz)
0.2
Key Features
Electrical connection
Connector
Mounting conditions
Flush/Non-flush
Output function
PNP/NPN
Rated switching distance (mm)
4
