Flow Monitoring

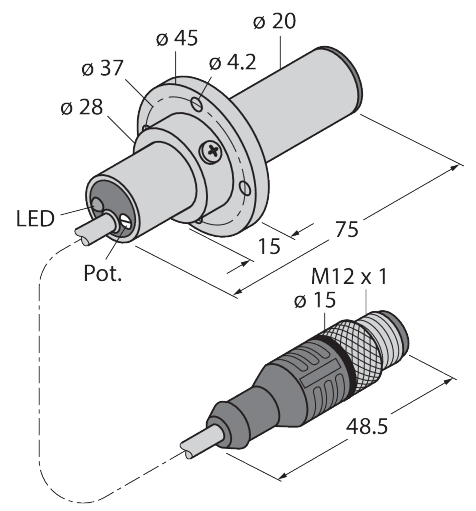

FCS-K20-AP8X-H1141/3M
Order ID no. 100001097
In Stock
Price Group
D2
List Price
226,16 €
Item Total
226,16 €
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Flow Sensors/Flow Meters
FCS-K20-AP8X-H1141/3M
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
0
Application area
Standard
Cable length (m)
3
Connector type
M12 x 1
Design
Immersion
Detection type
Calorimetric
Electrical connection
Cable with connector
Function
Flow monitoring
Housing material
Plastic
Housing quality
PBT-GF30-V0
Media temperature max.
70
Media temperature min. (°C)
-20
Medium
gases
Mounting conditions
Immersion sensor
Operating voltage
DC
Output function
PNP
Process connection
PVC flange (included in delivery)
Protection class
IP67
Switching element function
NO contact
Key Features
Process connection
PVC flange (included in delivery)
Output function
PNP
