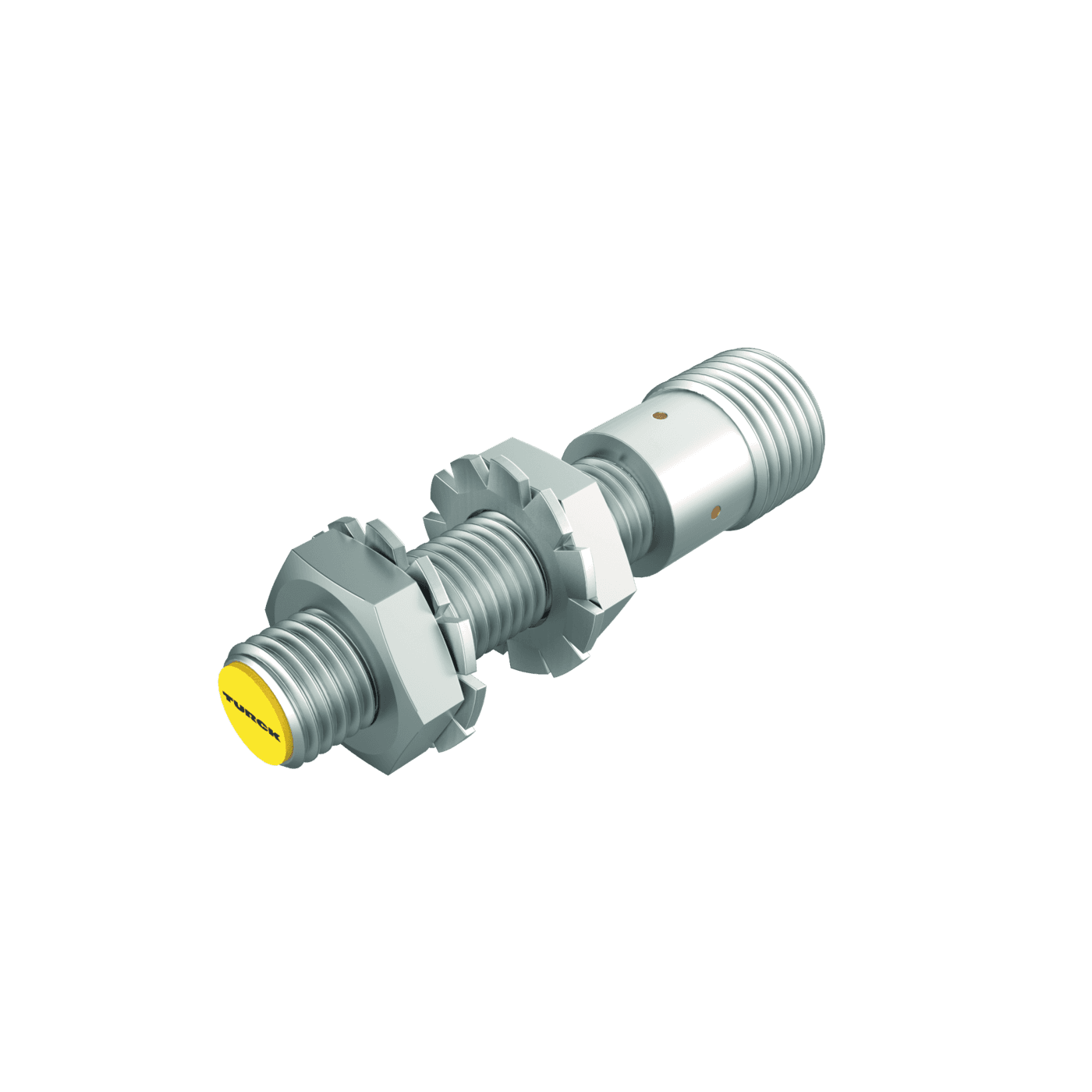

Inductive Sensor
BI2-EG08-AG6X-H1341
Order ID no. 100018000
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
2-wire
Design
Threaded barrel
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Stainless steel
Housing quality
1.4427 SO
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
2
Construction size
M8 x 1
Base unit
PCE
EAN/UPC code
4047101522914
Gross weight
20
Height
10
Length
50
Net weight
20
Dimension unit
MMT
Weight unit
GRM
Volume
0.01
Volume unit
DMQ
Width
20

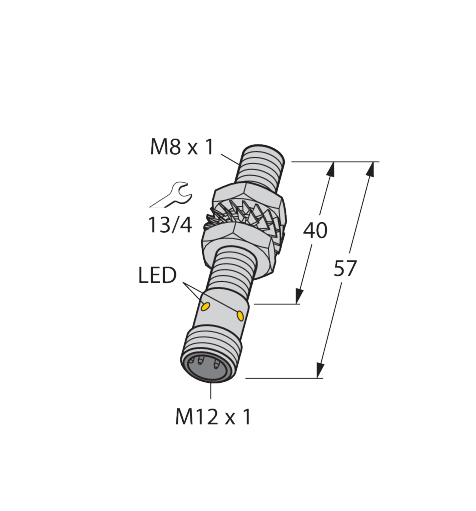

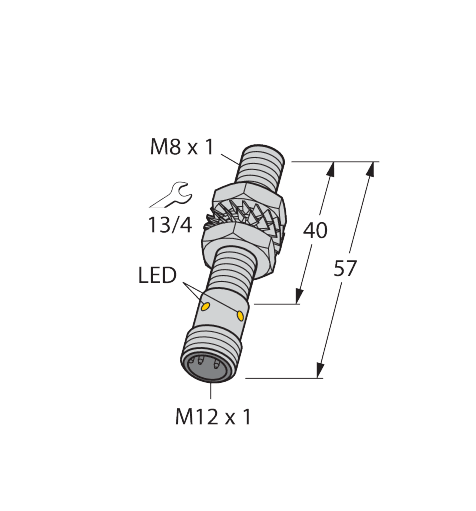

Dimensions
8 mm x 57 mm
Quality active face
PA12-GF30
Switching frequency (kHz)
0.3
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Output function
2-wire
Rated switching distance (mm)
2
In Stock
Price Group
E1
List Price
€42.02
