Inductive Sensor Rotation speed monitor

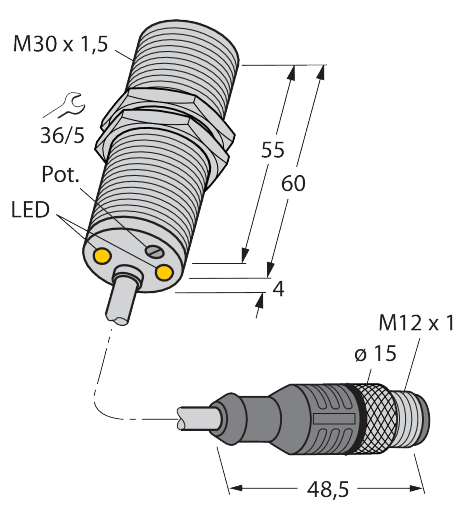

DBI10U-M30-AP4X2-0.3-RS4
Order ID no. 1500208
In Stock
Price Group
E1
List Price
239,69 €
Item Total
239,69 €
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Inductive Sensors
DBI10U-M30-AP4X2-0.3-RS4
Technical Data
Downloads
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Cable length (m)
0.3
Connector type
M12 x 1
Construction size
⌀ 30 mm
Design
Threaded barrel
Electrical connection
Cable with connector
Housing material
Metal
Housing quality
CuZn
Housing surface
Chrome-plated
Mounting conditions
Flush
Operating voltage
DC
Output function
PNP
Protection class
IP67
Quality active face
PBT
Rated switching distance (mm)
10
Special features
Rotation speed monitoring
Switching element function
NO contact
Key Features
Electrical connection
Cable with connector
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
10
