NI75U-CP80-VP4X2-H1141 | TURCK - Your Global Automation Partner

Inductive Sensor

NI75U-CP80-VP4X2-H1141

Order ID no. 1540802

homeHome
Loading...

Protection class: IP67
Switching element function: Complementary contact
Output function: PNP
Design: Rectangular
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Plastic
Housing quality: PBT-GF30-V0
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 85
Mounting conditions: Non-flush
Operating voltage: DC
Rated switching distance (mm): 75

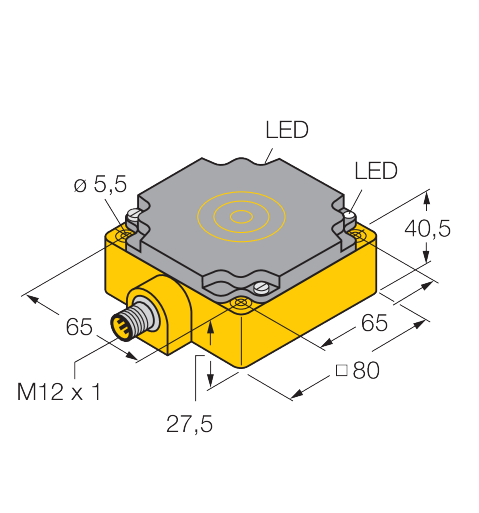

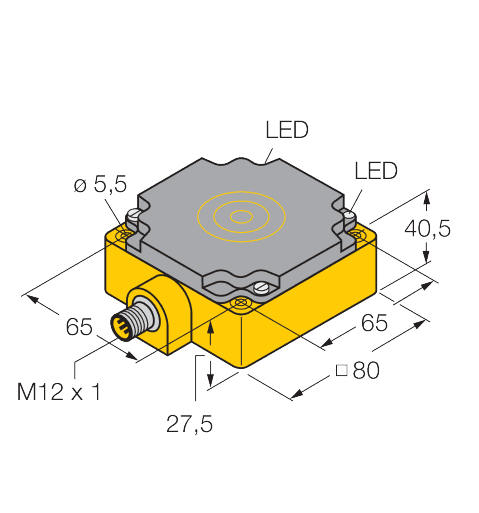

Construction size: 80 x 80 x 41 mm
Base unit: PCE
Special features: uprox+, Factor 1, Resistant to magnetic fields
EAN/UPC code: 4047101073683
Gross weight: 284
Height: 60
Length: 150
Net weight: 284
Dimension unit: MMT
Weight unit: GRM
Volume: 810
Volume unit: CMQ
Width: 90
Dimensions: 80 mm x 80 mm x 41 mm
Quality active face: PBT-GF30-V0
Switching frequency (kHz): 0.25

Key Features

Electrical connection: Connector
Mounting conditions: Non-flush
Output function: PNP
Rated switching distance (mm): 75

In Stock
Price Group	E1
List Price	€233.09
