EA5R900XKQ | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Measuring Light Screen
EA5R900XKQ
Order ID no. 3015158
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Communication protocol
IO-Link
Connector type
M12 x 1
Design
Rectangular

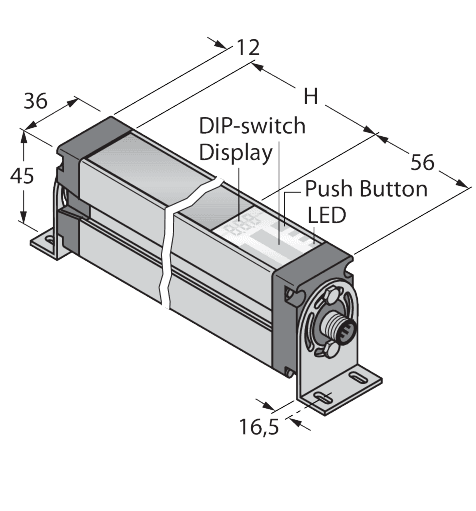

Dimensions
45,2 mm x 36 mm x 978 mm
Electrical connection
Connector
Function
Light screen
Housing material
Metal
Housing quality
AL
Housing surface
Anodized
Max. range (mm)
4000
Number of beams
180
Operating mode
Receiver
Optical resolution (mm)
5
Output function
PNP/NPN, analog output
Protection class
IP65
Scan field (mm)
900
Switching element function
2 x NO contact
Key Features
Function
Light screen
Output function
PNP/NPN, analog output
Max. range (mm)
4000
In Stock
Price Group
F3
List Price
€1,830.83
