QS186EL11Q5 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

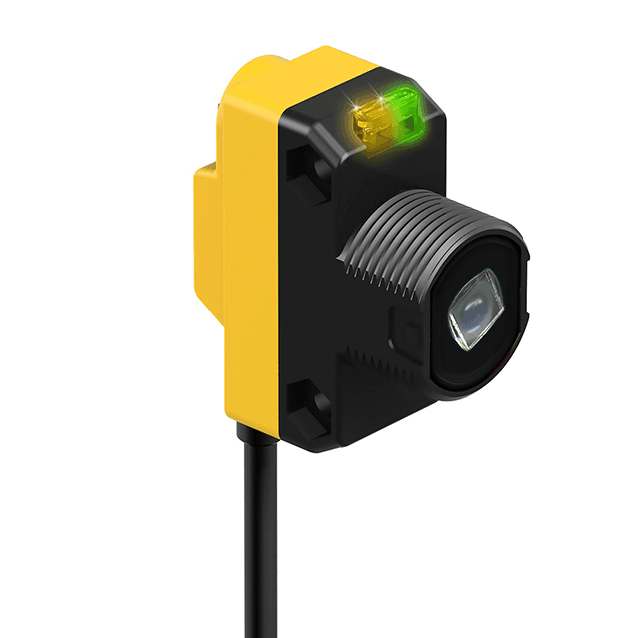

Photoelectric Sensor
QS186EL11Q5
Order ID no. 3071331
home
Home
Loading...
Technical Data
Downloads
Special features
Laser
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-10
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
M12 x 1
Design
Rectangular with thread
Construction size
⌀ 18 mm

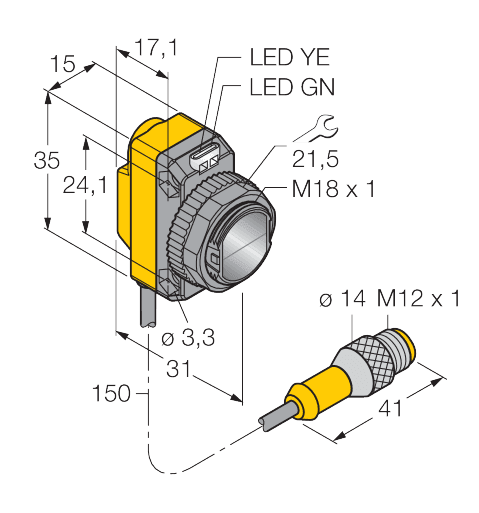

Dimensions
31 mm x 15 mm x 35 mm
Housing material
Plastic
Housing quality
ABS
Light type
Red
Function
Opposed mode sensor
Operating mode
Laser Emitter
Protection class
IP67
Max. range (mm)
15000
Wavelength (nm)
650
Key Features
Light type
Red
Function
Opposed mode sensor
Max. range (mm)
15000
In Stock
Price Group
A1
List Price
€140.17
