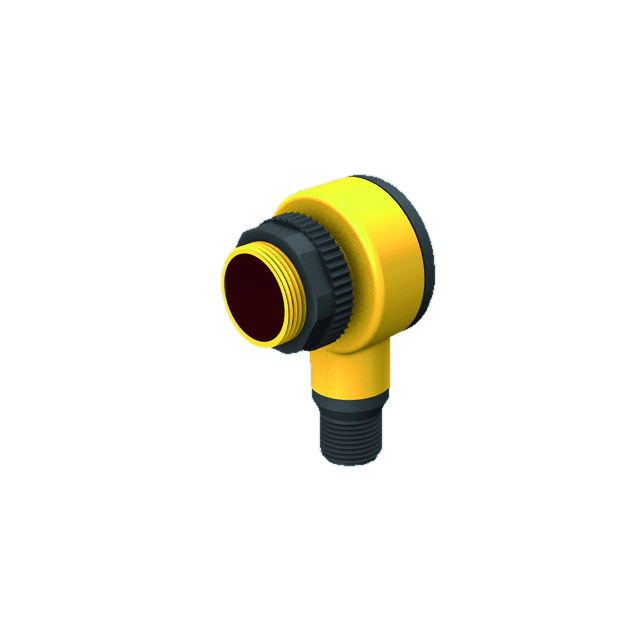

Photoelectric Sensor

T18-2VPFF200-Q8

Order ID no. 3802682

Special features: Chemical-resistant, Encapsulated, Wash down, Resistant to chemicals
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -40
Electrical connection: Connector
Connector type: M12 x 1
Design: Tube
Construction size: ⌀ 18 mm
Dimensions: 30 mm x 30 mm x 54 mm
Housing material: Plastic
Housing quality: Thermoplastic material
Light type: IR
Function: Proximity switch
Operating mode: Background suppression, non-adjustable
Output function: PNP
Protection class: IP67, IP68, IP69
Max. range (mm): 200
Switching element function: Complementary contact
Wavelength (nm): 624
