Photoelectric Sensor
LM150IRSDQP-X232
Order ID no. 3809721
In Stock
Price Group
F3
List Price
€1,395.00
Item Total
€1,395.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Special features
Resistant to chemicals
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-10
Approvals
CE, cULus
Cable length (m)
0.3
Communication protocol
RS232
Electrical connection
Cable with connector
Connector type
M12 x 1
Design
Rectangular

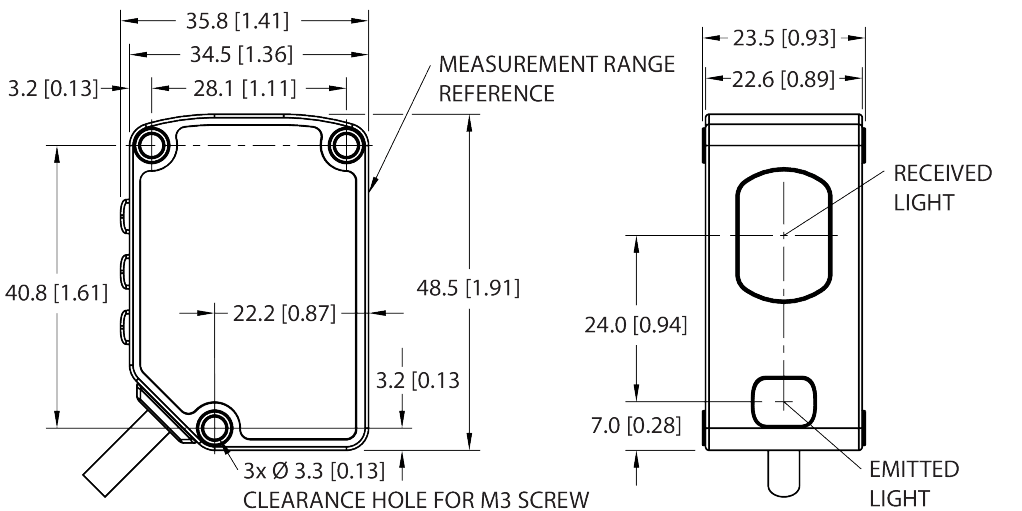

Dimensions
35,8 mm x 23,5 mm x 48,5 mm
Housing material
Stainless steel
Housing quality
1.4404 (AISI 316L)
Housing surface
Grey
Laser class
 2
Light type
Red
Function
Proximity switch
Operating mode
Triangulation
Optical resolution (mm)
0.004
Output function
Analog output
Protection class
IP67
Max. range (mm)
150
Switching element function
NO contact
Wavelength (nm)
655
Key Features
Light type
Red
Function
Proximity switch
Output function
Analog output
Max. range (mm)
150
