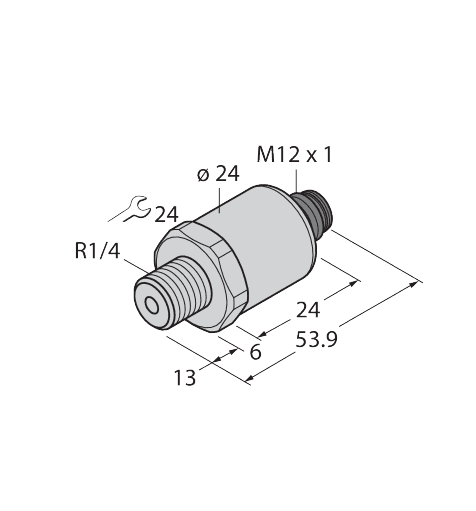

Pressure Transmitter
PT1V-1010-IOL-H1141
Order ID no. 100038513
In Stock
Price Group
G1
List Price
€166.27
Item Total
€166.27
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101593808
Electrical output
2 × switching output
Gross weight
83
Height
40
Length
100
Net weight
83
Dimension unit
MMT
Weight unit
GRM
Volume
0.24
Volume unit
DMQ
Width
60
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Approvals
cULus
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M12 x 1
Design
Without display
Housing material
Stainless-steel/Plastic
Housing quality
1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer
Ceramic Al₂O₃
Process connection
R 1/4″ male thread EN 10226
Media temperature max.
125
Media temperature min. (°C)
-40
Pressure range
-1...1 bar
Operating voltage
DC
Output function
PNP/NPN
Pressure type
Relative pressure
Protection class
IP67
Switching element function
NO/NC
Key Features
Communication protocol
IO-Link
Electrical output
2 × switching output
Process connection
R 1/4″ male thread EN 10226
