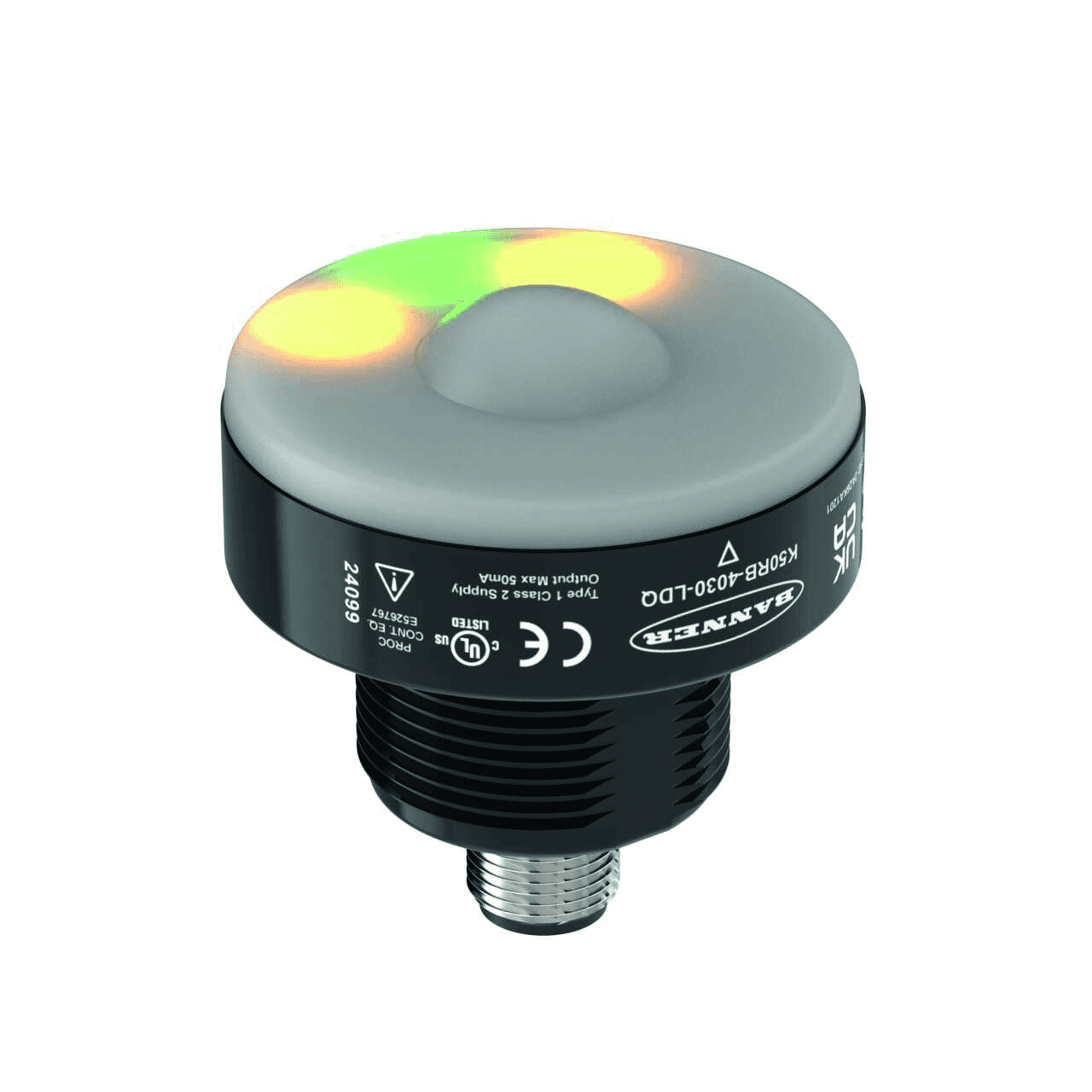

Radar Sensor
K50RB-4030-LDQ
Order ID no. 3815568
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-40
Antenna connection
Internal, planar
Beam angle
40° x 30°
Connector type
M12 x 1
Design
Rectangular
Dimensions
50 mm x 42 mm
Electrical connection
Connector
Frequency band
F band, ISM region
Frequency range
60 GHz
Function
Distance measurement
Function
Proximity switch
Housing material
Plastic
Housing quality
PC
Max. range (mm)
5000
Operating mode
Time-of-Flight
Operating voltage
DC
Output function
PNP/NPN
Protection class
IP67
Setting option
Remote Teach, Vision Software and Firmware
Switching element function
NO/NC programmable
Key Features
Electrical connection
Connector
Output function
PNP/NPN
Beam angle
40° x 30°
Max. range (mm)
5000
In Stock
Price Group
F3
List Price
374,88 €
