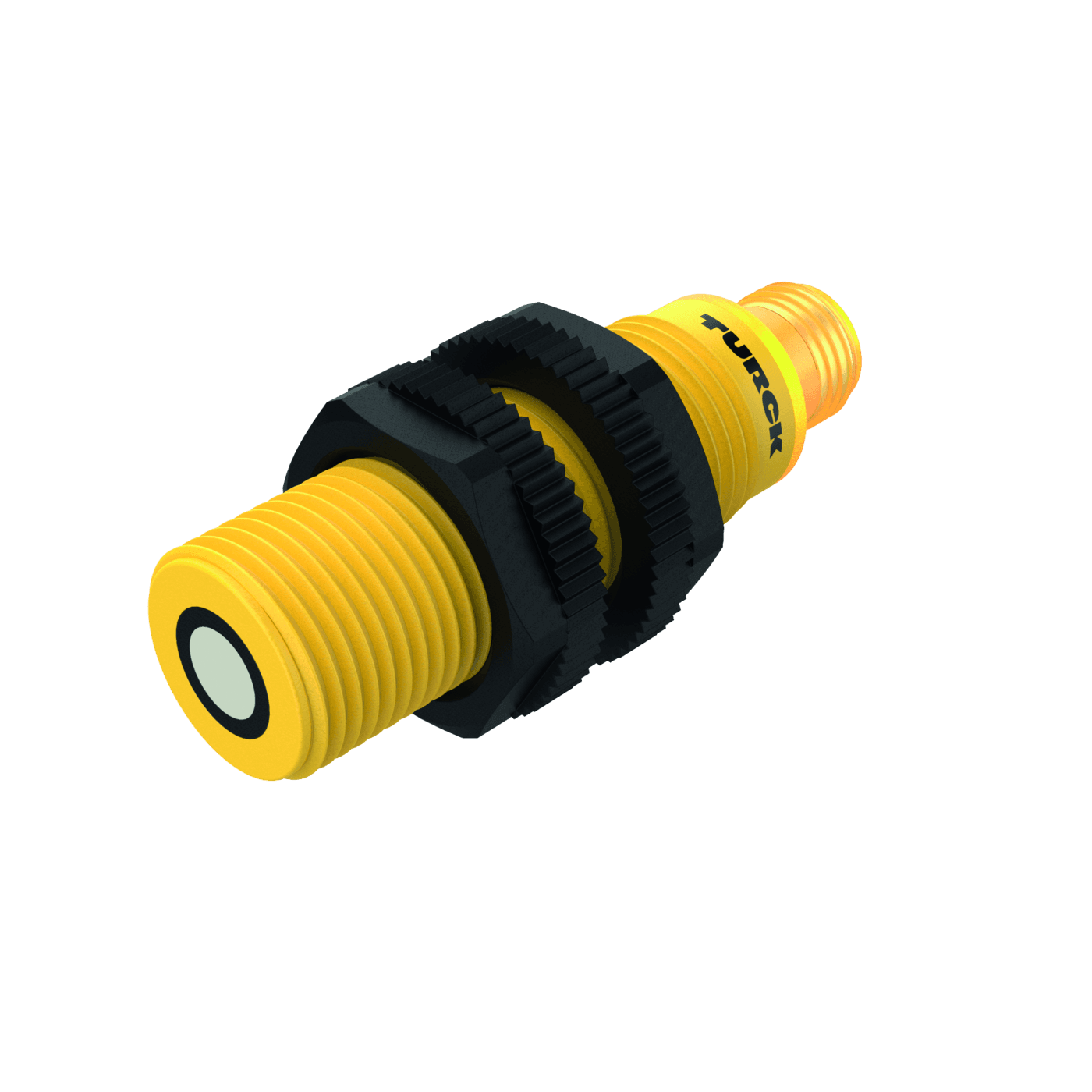

Ultrasonic Sensor
RU50U-S18-AP8X-H1141
Order ID no. 100000746
In Stock
Price Group
D2
List Price
€125.07
Item Total
€125.07
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Special features
Compact
Detection type
contactless
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-20
Electrical connection
Connector
Connector type
M12 x 1
Design
Threaded barrel
Construction size
⌀ 18 mm

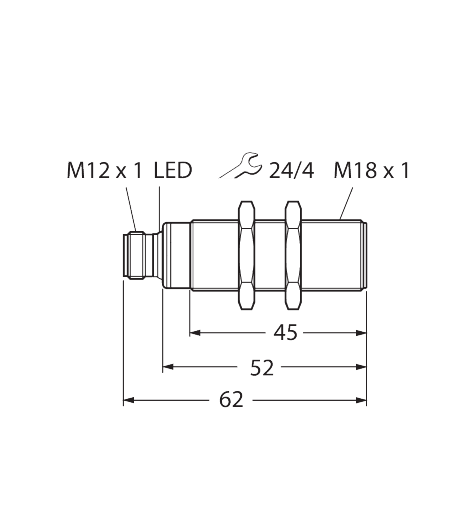

Dimensions
62 mm
Housing material
Plastic
Housing quality
LCP
Housing surface
Yellow
Medium
liquids, Bulk goods
Function
Proximity switch
Operating mode
Time-of-Flight
Output function
PNP
Measuring principle
Ultrasonic
Protection class
IP67
Quality active face
Epoxy
Max. range (mm)
500
Resolution
0.2 mm
Setting option
Remote Teach
Switching element function
NO contact
Radiation direction
straight
Key Features
Electrical connection
Connector
Output function
PNP
Max. range (mm)
500
