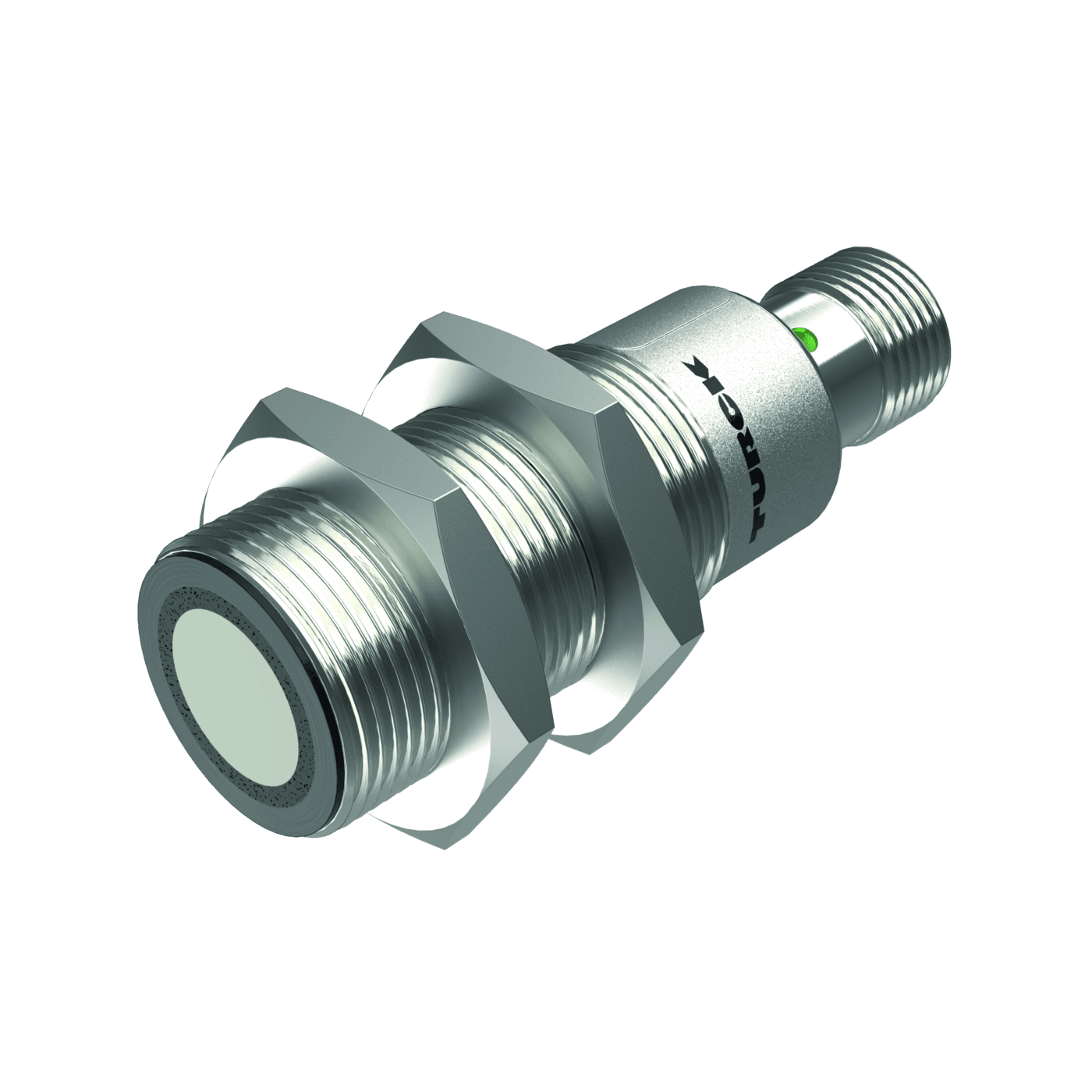

Ultrasonic Sensor
RU80D-M18M-UPN8X2-H1141
Order ID no. 100039008
home
Home
Loading...
Technical Data
Downloads
Special features
Teach input
Detection type
contactless
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M12 x 1
Design
Threaded barrel
Construction size
⌀ 18 mm

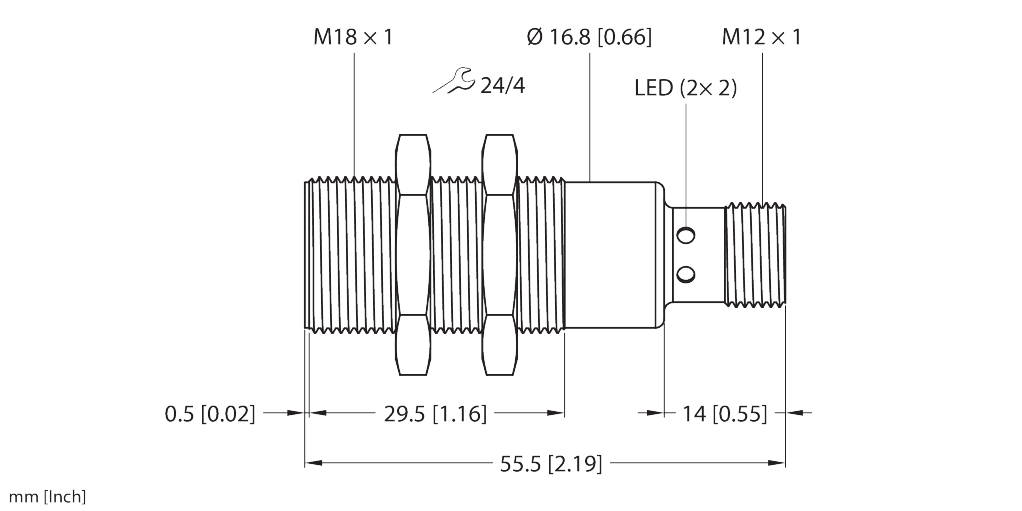

Dimensions
55,5 mm
Housing material
Metal
Housing quality
CuZn
Housing surface
Nickel Plated
Medium
liquids, Bulk goods
Function
Proximity switch
Operating mode
Time-of-Flight
Output function
PNP/NPN
Measuring principle
Ultrasonic
Protection class
IP67
Quality active face
Epoxy
Max. range (mm)
800
Resolution
1 cm
Setting option
Remote Teach, IO-Link
Switching element function
NO/NC
Radiation direction
straight
home
Turck-Shop
Sensors
Ultrasonic Sensors
RU80D-M18M-UPN8X2-H1141
Key Features
Communication protocol
IO-Link
Electrical connection
Connector
Output function
PNP/NPN
Max. range (mm)
800
In Stock
Price Group
D2
List Price
€230.78
Item Total
€230.78
