Ultrasonic Sensor
QS18UNAE
Order ID no. 3073160
In Stock
Price Group
F3
List Price
€208.74
Item Total
€208.74
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Cable length (m)
2
Design
Rectangular with thread

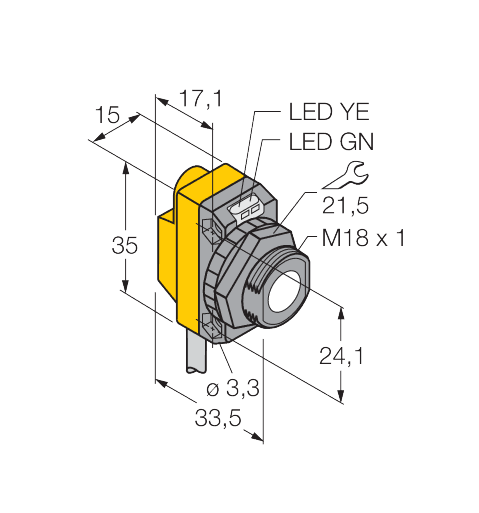

Dimensions
33,5 mm x 15 mm x 35 mm
Electrical connection
Cable
Function
Proximity switch
Housing material
Plastic
Housing quality
ABS
Max. range (mm)
500
Operating mode
Time-of-Flight
Output function
NPN
Protection class
IP68
Radiation direction
straight
Special features
Clear object detection, Wash down
Switching element function
NO contact
Key Features
Electrical connection
Cable
Output function
NPN
Max. range (mm)
500
