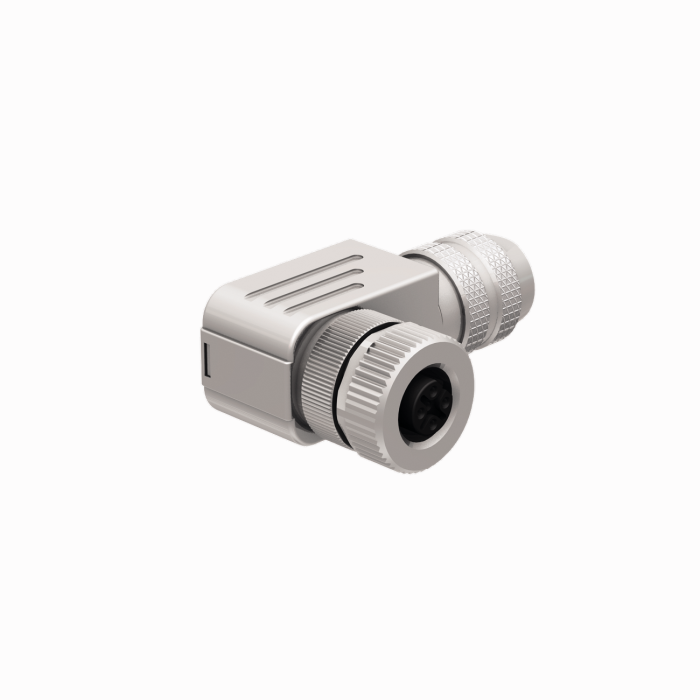

Field-Wireable Connector
BMWS8251-0/9
Order ID no. 6904713| In Stock | |
| Price Group | K2 |
| List Price | €24.75 |
Item Total€24.75
Quantity
- Network protocol
- PROFIBUS-DP
- Application
- Signal
- Voltage (V)
- 60
- Approvals
- cULus recognized
- Number of pins
- 5
- Coupling nut/screw material A
- Die-cast Zinc
- Screw-in thread
- PG9
- Current (A)
- 4
- Connection mode
- Screw/clamp connection
- Connector A
- Female, M12 × 1, Angled, B-coded
Key Features
- Connection mode
- Screw/clamp connection
- Connector A
- Female, M12 × 1, Angled, B-coded
- Number of pins
- 5
- Application
- Signal
