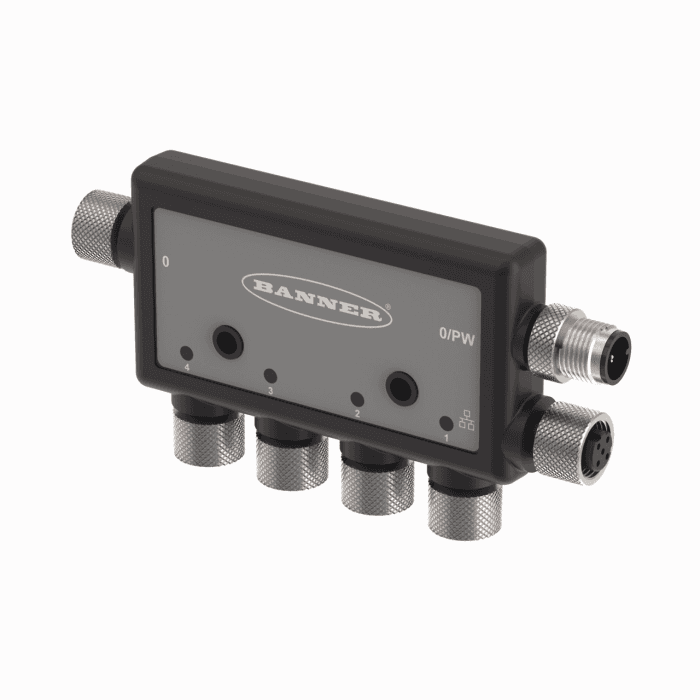

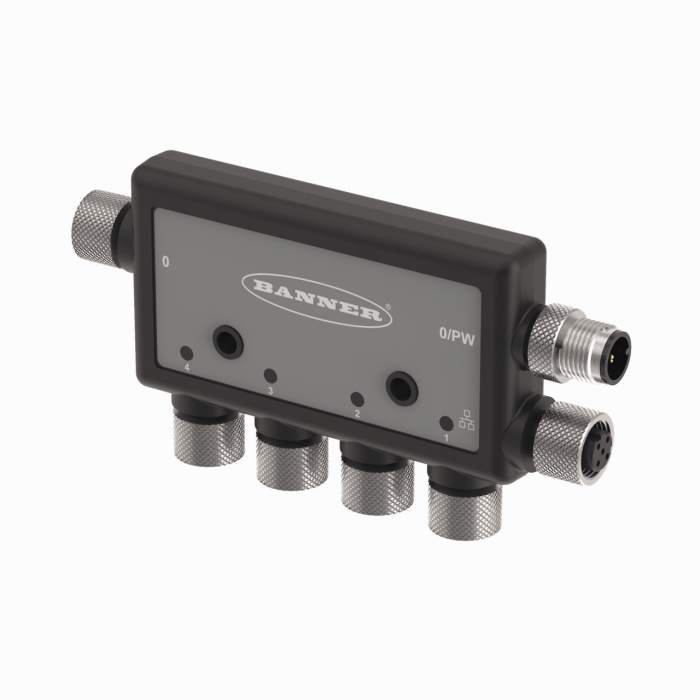

Network Controller

DXMR90-4K

Order ID no. 3813874

Protection class: IP67
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 70
Design: Rectangular
Electrical connection: Connector
Operating voltage: DC
Housing material: Plastic
Antenna connection: No radio participant
Runs with battery: No
Communication protocol: RS485, Modbus RTU, EtherNet/IP, Modbus TCP, PROFINET
Connector type: M12 × 1
Housing quality: PC
Approvals: CE, UKCA
Cascadable: Yes

Communication protocol: RS485, Modbus RTU, EtherNet/IP, Modbus TCP, PROFINET
