PVL225PQ | TURCK - Your Global Automation Partner

Pick-to-Light

PVL225PQ

Order ID no. 3026206

homeHome
Loading...

Protection class: IP50
Switching element function: NO contact
Output function: PNP
Cable length (m): 2
Design: Rectangular
Electrical connection: Cable with connector
Connector type: M12 × 1
Housing material: Metal
Housing quality: Anodized AL
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 50
Max. range (mm): 1500
Function: Retroreflective Sensor
Operating voltage: DC
Input type: PNP
Scan field (mm): 225
Optical resolution (mm): 70
Light type: Red

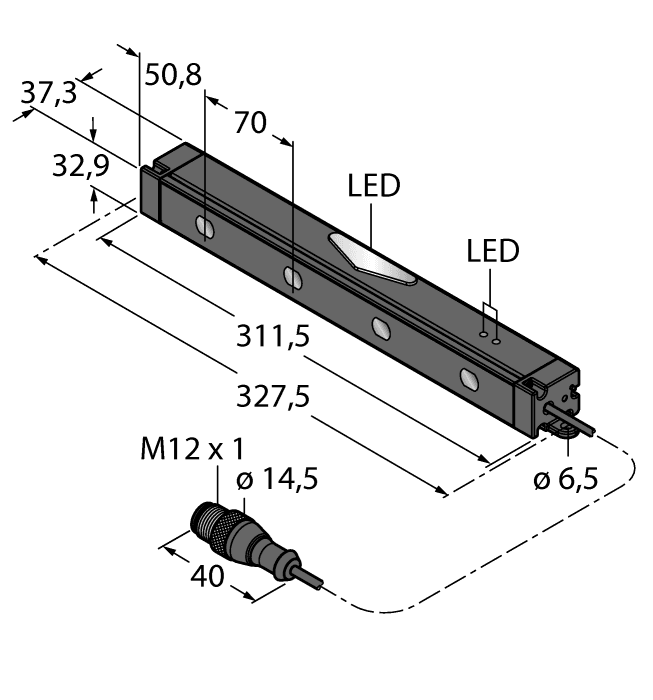

Construction size: 327.5 x 31 x 37.3 mm
Number of colors/segments: 2
Number of beams: 4

Key Features

Scan field (mm): 225
Light type: Red
Output function: PNP
Number of colors/segments: 2

In Stock
Price Group	F3
List Price	€342.47
