PVD100Q

Pick-to-Light

PVD100Q

Order ID no. 3070989
In Stock
Price GroupF3
List Price€414.63
  1. homeTurck-Shop
  2. Lighting and Indicators
  3. Pick-to-Light
  4. PVD100Q
Protection class
IP62
Switching element function
NO/NC
Output function
PNP/NPN
Cable length (m)
2
Design
Rectangular
Electrical connection
Cable with connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
AL
Ambient temperature min. (°C)
0
Ambient temperature max. (°C)
50
Max. range (mm)
400
Function
Retroreflective sensor or proximity switch
Operating voltage
DC
Input type
Bipolar (PNP/NPN)
Scan field (mm)
100
Optical resolution (mm)
28.6
Light type
Red
Construction size

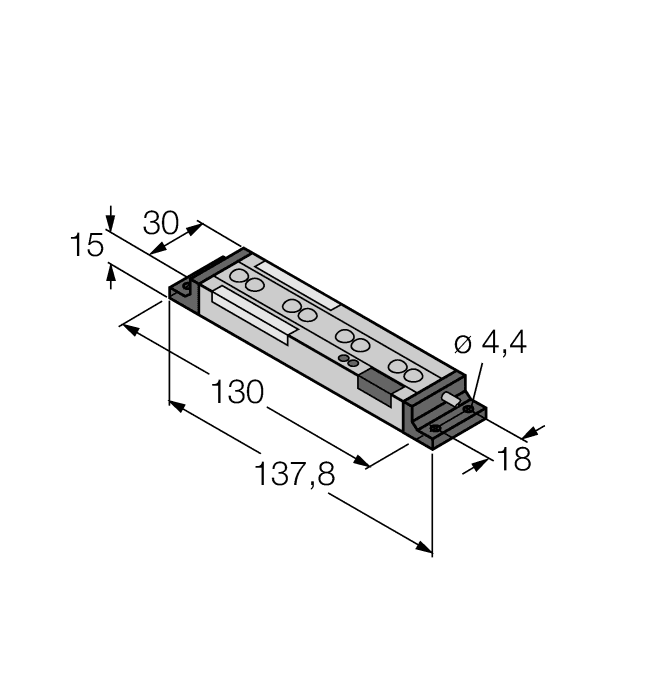

137.8 x 30 x 15 mm
Number of colors/segments
2
Number of beams
4

Key Features

Scan field (mm)
100
Light type
Red
Output function
PNP/NPN
Number of colors/segments
2
Item Total€414.63
Quantity
Contact Support
