SLC4P14-320P44 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

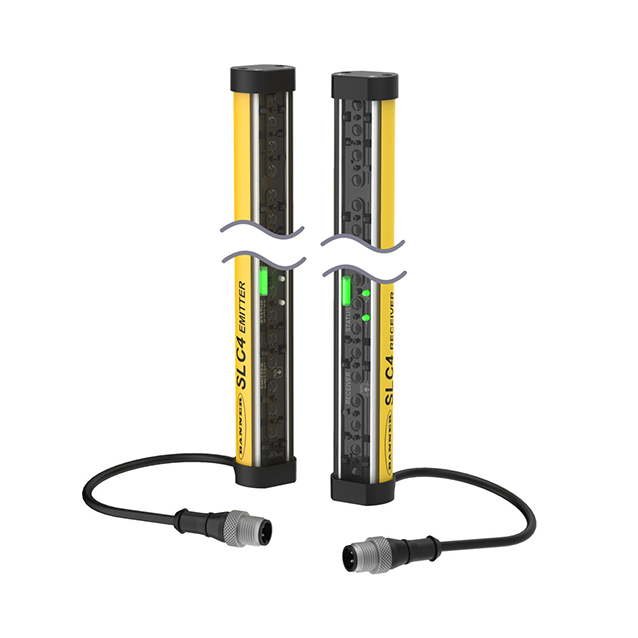

Safety Light Curtain
SLC4P14-320P44
Order ID no. 3806330
home
Home
Loading...
Technical Data
Protection class
IP65
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
55
Design
Rectangular
Electrical connection
Cable with connector
Switching element function
NC contact
Output function
2 × PNP
Housing material
Plastic
Function
Light screen
Cable length (m)
0.3
Connector type
M12 × 1
Housing quality
PC
Approvals
CE, cULus
Max. range (mm)
2000
Light type
IR
Scan field (mm)
320
Cascadable
No
Optical resolution (mm)
14
With muting function
No
Start/Restart interlock
no
Coding level/tamper protection
Uncoded
Key Features
Cascadable
No
Scan field (mm)
320
Optical resolution (mm)
14
In Stock
Price Group
F3
List Price
€952.23
