- Base unit
- PCE
- EAN/UPC code
- 4047101670493
- Function
- Level detection, For dry granules, For highly viscous media, Continuous level measurement
- Gross weight
- 43
- Height
- 30
- Length
- 145
- Net weight
- 43
- Dimension unit
- MMT
- Weight unit
- GRM
- Volume
- 0.87
- Volume unit
- DMQ
- Width
- 200
- Ambient temperature max. (°C)
- 60
- Ambient temperature min. (°C)
- -40
- Communication protocol
- IO-Link
- Electrical connection
- Connector
- Connector type
- M12 × 1
- Design
- Threaded barrel

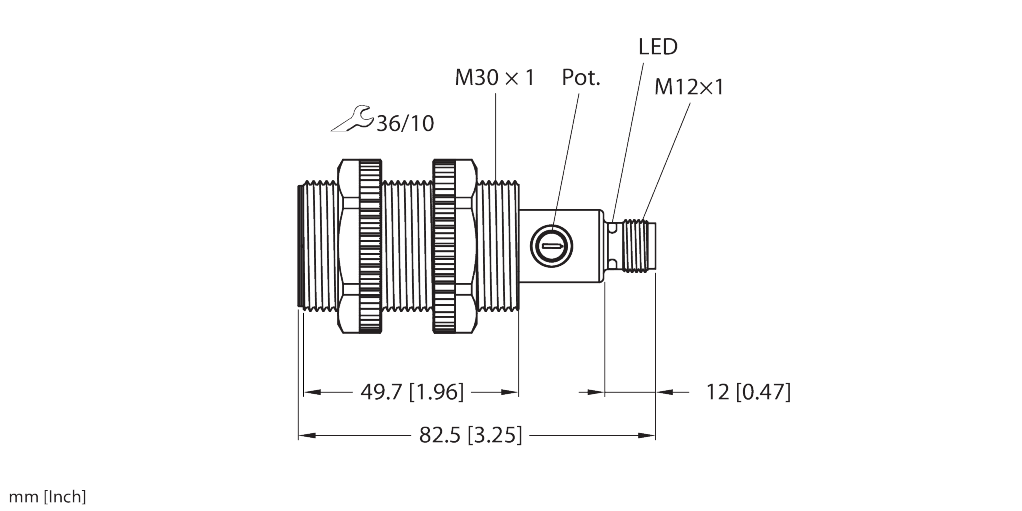

- Dimensions
- 30 mm x 82 mm
- Housing material
- Plastic
- Housing quality
- PA12-GF30, PEI
- Medium
- Bulk goods, liquids
- Media temperature max.
- 85
- Media temperature min. (°C)
- -40
- Mounting conditions
- Flush/Non-flush
- Operating voltage
- DC
- Output function
- PNP/NPN
- Measuring principle
- Capacitive
- Protection class
- IP67
- Quality active face
- PA12-GF30
- Switching element function
- NO/NC programmable
