RI360P0-QR24M0-IOLX2-H1141/3GD | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

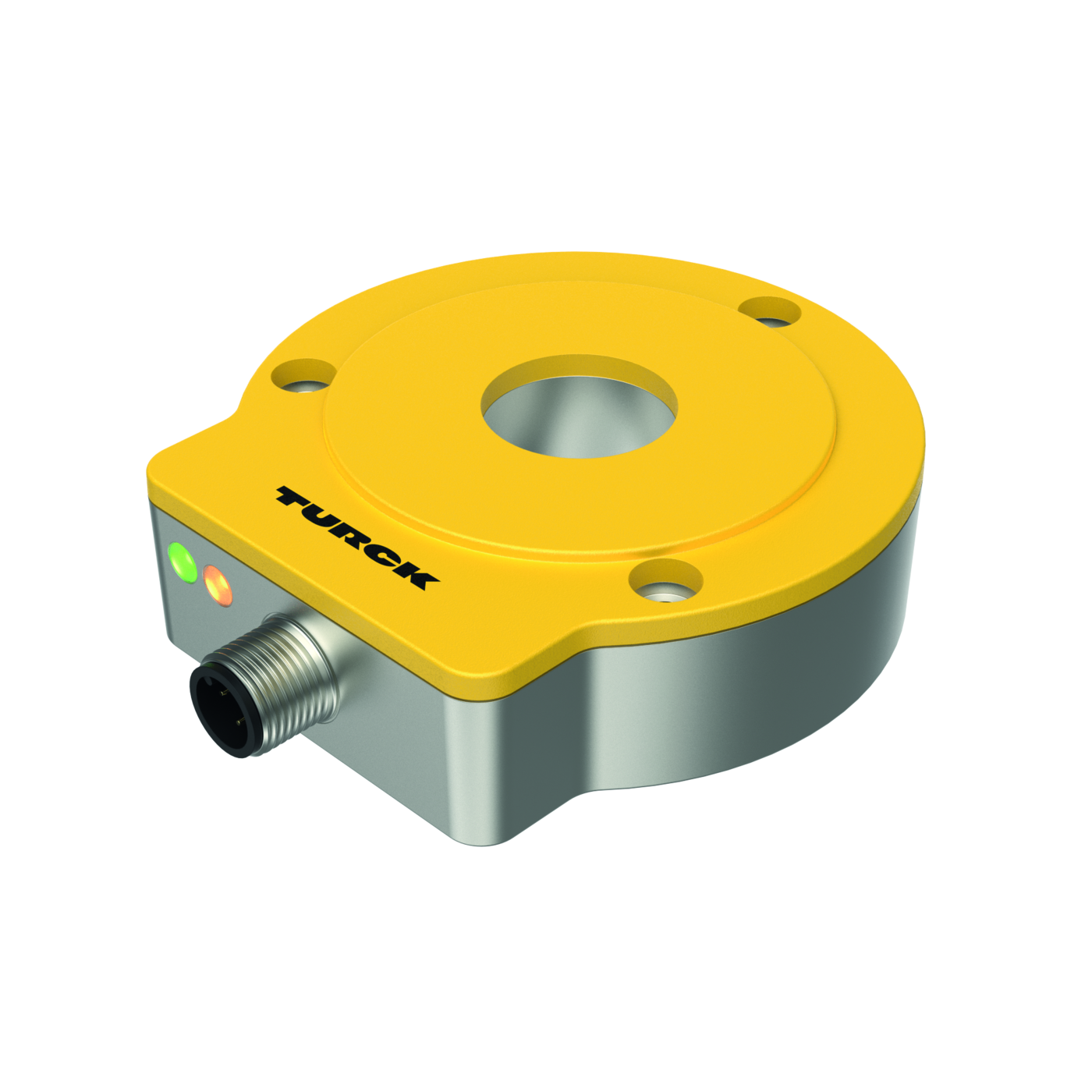

Contactless Encoder with ATEX Certificate

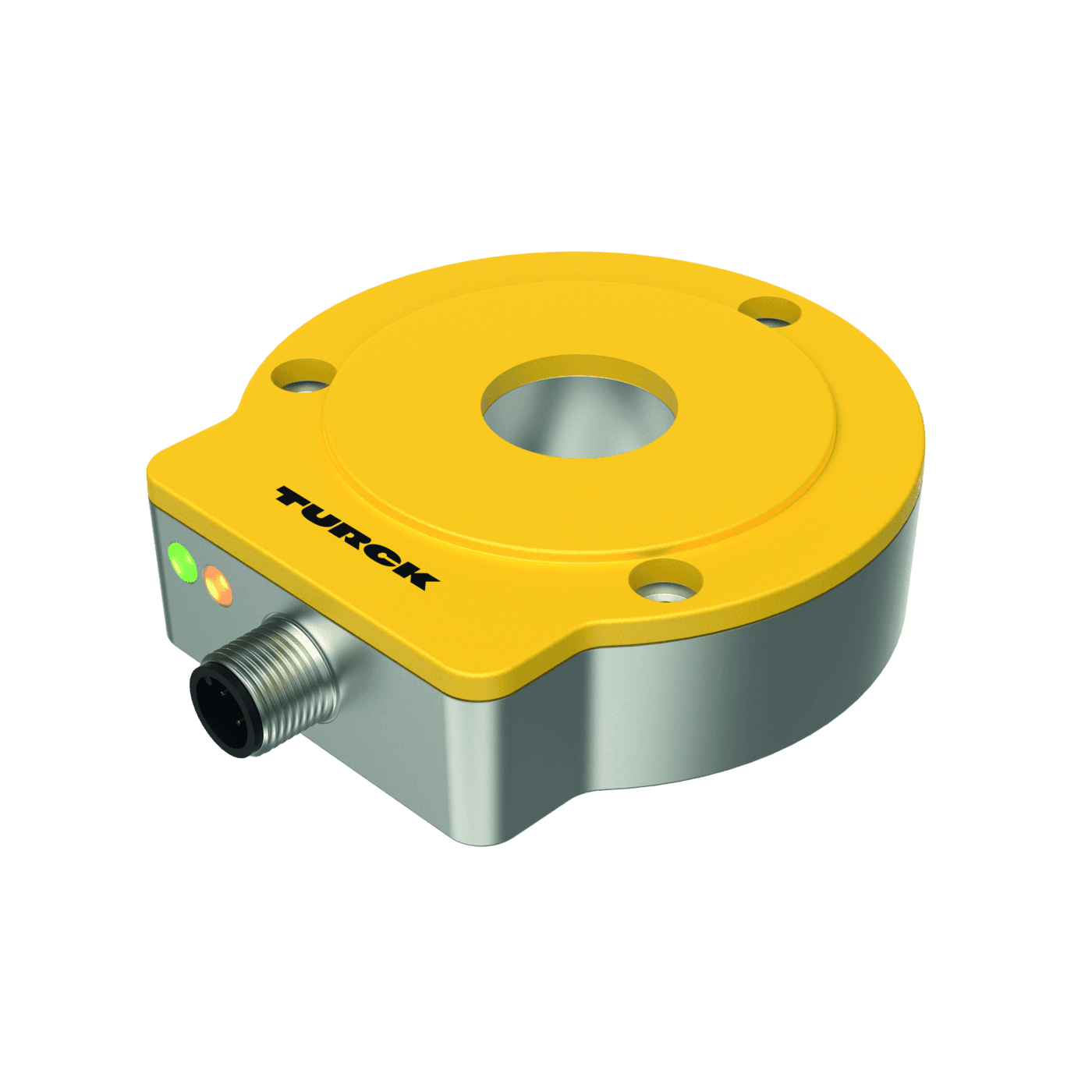

RI360P0-QR24M0-IOLX2-H1141/3GD
Order ID no. 100003122
home
Home
Loading...
Technical Data
Protection class
IP68, IP69K
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Electrical connection
Connector
Operating voltage
DC
Housing material
Metal/plastic
Communication protocol
IO-Link
Connector type
M12 × 1
Housing quality
ZnAlCu1/PBT-GF30-V0
Measuring range
0…360°
Output type
Absolute semi-multiturn
Shaft Type
Hollow shaft
Shaft diameter D (mm)
6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20
Flange type
Flange without mounting element
Measuring principle
Inductive
Key Features
Output type
Absolute semi-multiturn
Shaft diameter D (mm)
6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20
Shaft Type
Hollow shaft
In Stock
Price Group
G1
List Price
€294.20
