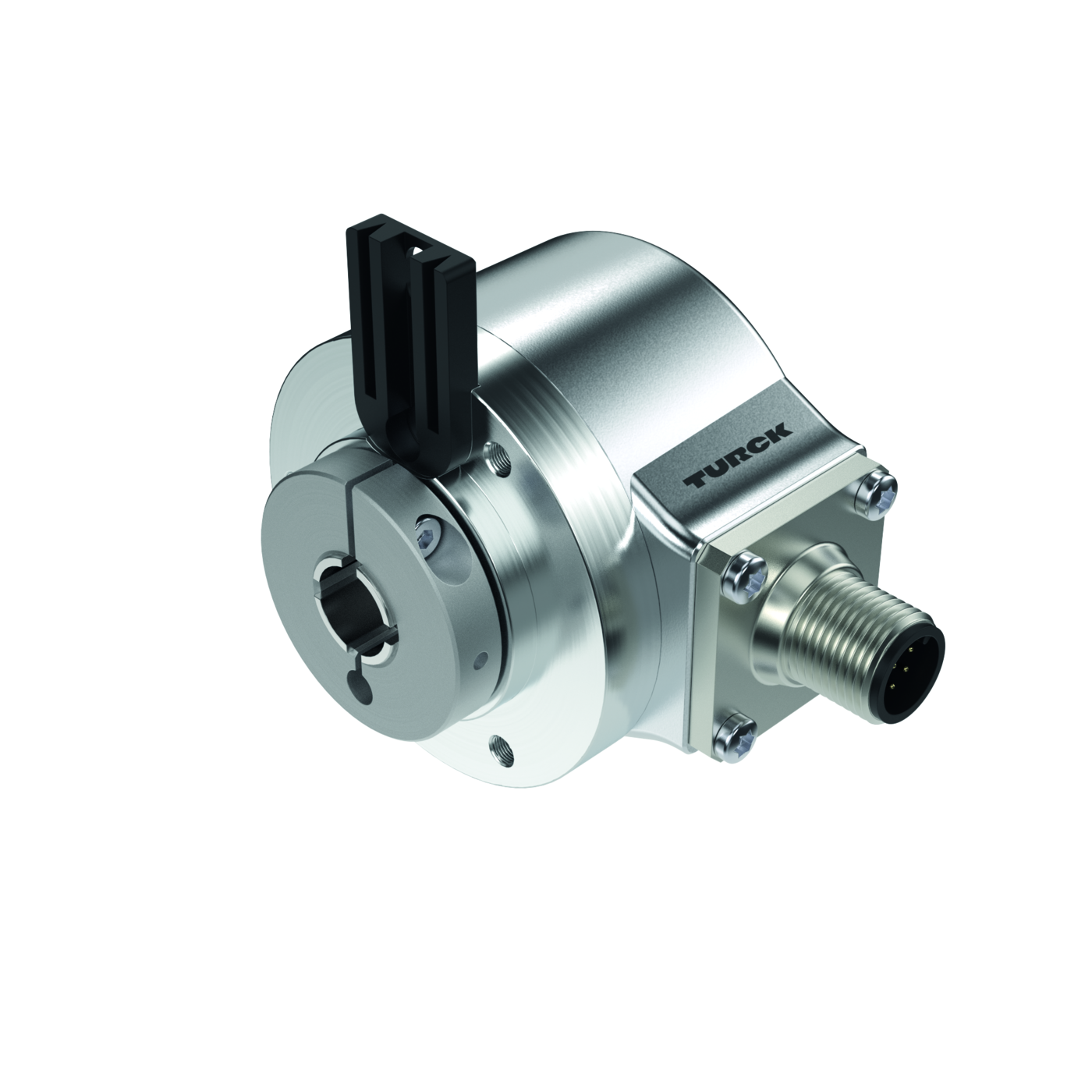

Incremental Encoder
REI-12H12T-2B1000-H1181
Order ID no. 100010386
home
Home
Loading...
Technical Data
Protection class
IP67
Output function
Push-Pull/HTL
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Die-cast zinc
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
85
Measuring principle
Optical
Output type
Incremental
Shaft Type
Hollow shaft
Shaft diameter D (mm)
12 mm
Flange diameter (mm)
50.8
Flange type
Flange with mounting element
Resolution, incremental
1000
Base unit
PCE
EAN/UPC code
4047101551914
Gross weight
400
Height
0
Length
0
Net weight
400
Dimension unit
MMT
Weight unit
GRM
Volume
0
Width
0
Design
Hollow shaft
Encoder line
Industrial-Line
Technology
Optical
Protection class shaft
IP67
Key Features
Output type
Incremental
Flange diameter (mm)
50.8
Shaft diameter D (mm)
12
Shaft Type
Hollow shaft
In Stock
Price Group
F3
List Price
€337.80
