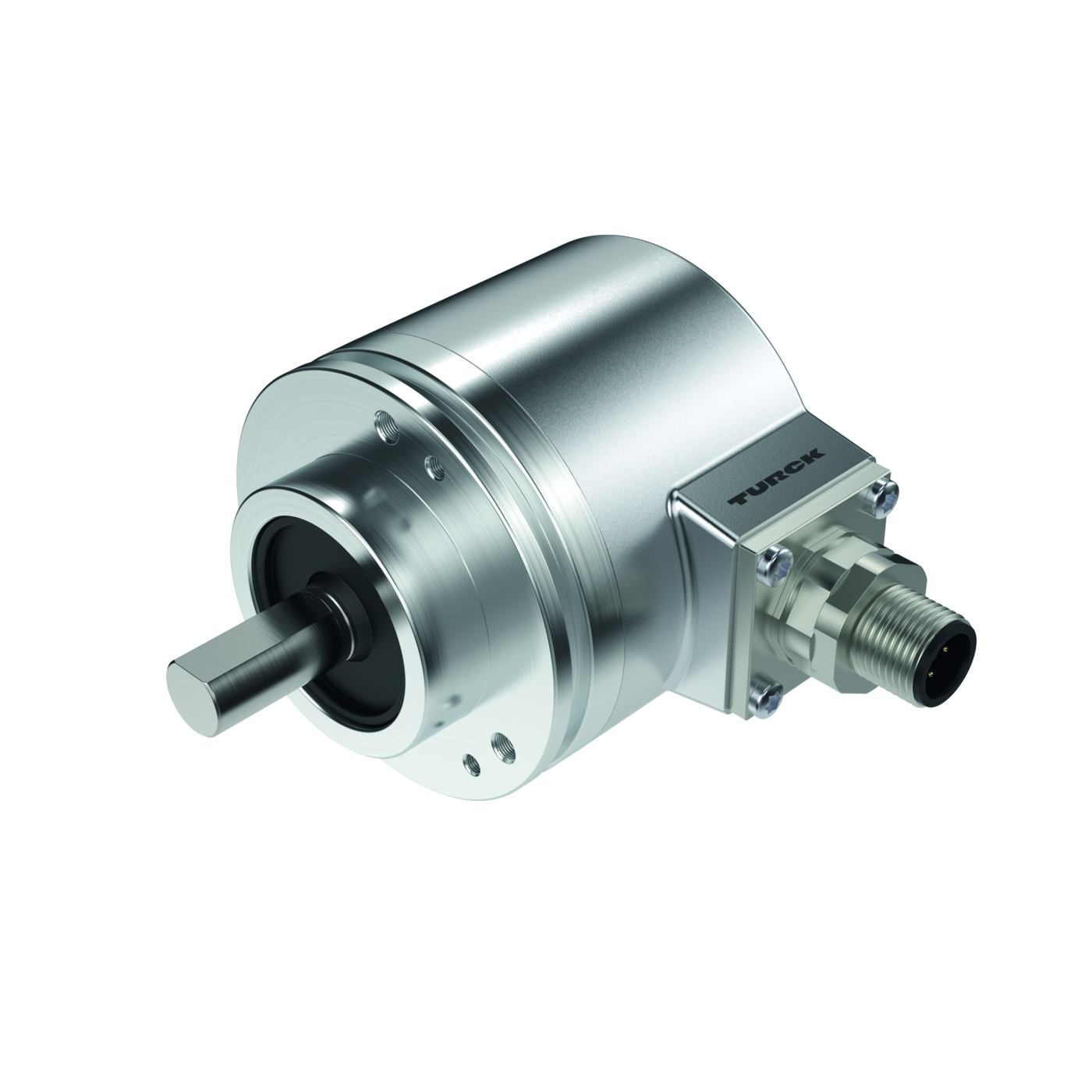

Absolute Rotary Encoder - Multiturn
REM-105S6C-9D32B-B1M12/N46
Order ID no. 100011419
home
Home
Loading...
Technical Data
Protection class
IP67
Communication protocol
CANopen
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Die-cast zinc
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
80
Measuring principle
Optical
Output type
Absolute multiturn
Shaft Type
Solid shaft
Shaft diameter D (mm)
6 mm
Flange diameter (mm)
58
Flange type
Clamping flange
Base unit
PCE
EAN/UPC code
4047101547764
Gross weight
469
Height
100
Length
130
Net weight
469
Dimension unit
MMT
Weight unit
GRM
Volume
19.142
Volume unit
DMQ
Width
155
Design
Solid shaft
Encoder line
Industrial-Line
Technology
Optical
Protection class shaft
IP67
Key Features
Output type
Absolute multiturn
Flange diameter (mm)
58
Shaft diameter D (mm)
6
Shaft Type
Solid shaft
In Stock
Price Group
F3
List Price
€653.95
