BI8-M18-2APS8X2-H1141 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Inductive Safety Sensor

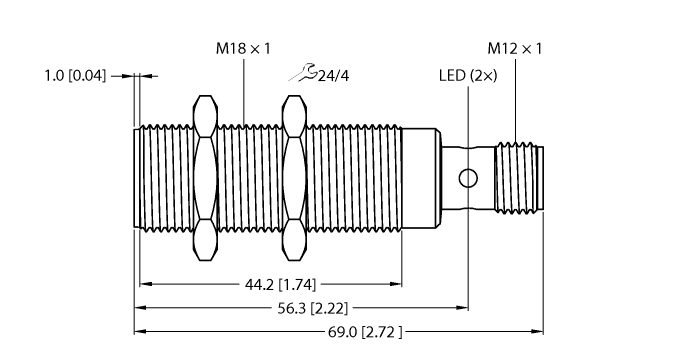

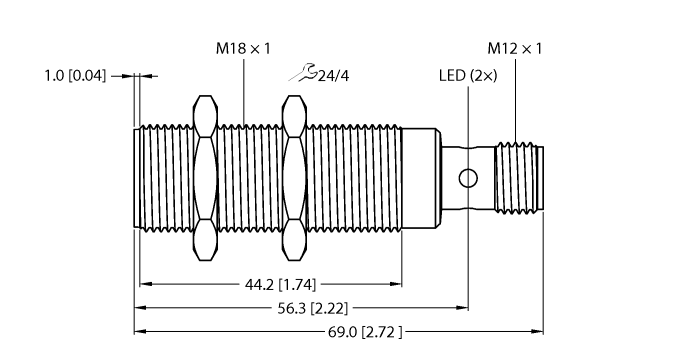

BI8-M18-2APS8X2-H1141
Order ID no. 100016607
home
Home
Loading...
Technical Data
Protection class
IP67
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Design
Threaded barrel
Mounting conditions
Flush
Electrical connection
Connector
Operating voltage
DC
Switching element function
2 x OSSD, NO contact
Output function
PNP
Housing material
Metal
Function
Inductive safety switch
Connector type
M12 × 1
Housing quality
CuZn
Construction size
M18 x 1
Rated switching distance (mm)
8
Cascadable
No
Coding level/tamper protection
Uncoded
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
8
In Stock
Price Group
E1
List Price
€119.57
