NI4-M12-AD6X | TURCK - Your Global Automation Partner
Inductive Sensor
NI4-M12-AD6X
Order ID no. 100018016
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
2-wire
Cable length (m)
2
Design
Threaded barrel
Electrical connection
Cable
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Non-flush
Operating voltage
DC
Rated switching distance (mm)
4
Construction size
M12 x 1
Base unit
PCE
EAN/UPC code
4047101523072
Gross weight
98
Height
35
Length
190
Net weight
98
Dimension unit
MMT
Weight unit
GRM
Volume
1.264
Volume unit
DMQ
Width
190

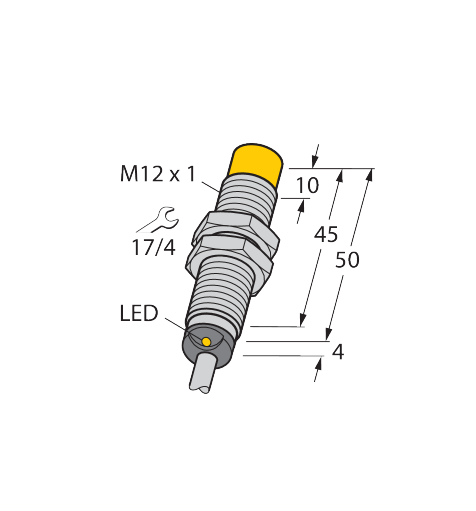

Dimensions
12 mm x 54 mm
Housing surface
Chrome-plated
Quality active face
PA12-GF30
Switching frequency (kHz)
1
Key Features
Electrical connection
Cable
Mounting conditions
Non-flush
Output function
2-wire
Rated switching distance (mm)
4
In Stock
Price Group
E1
List Price
€38.50
