NI4-M12-AD6X-H1141 | TURCK - Your Global Automation Partner
Inductive Sensor

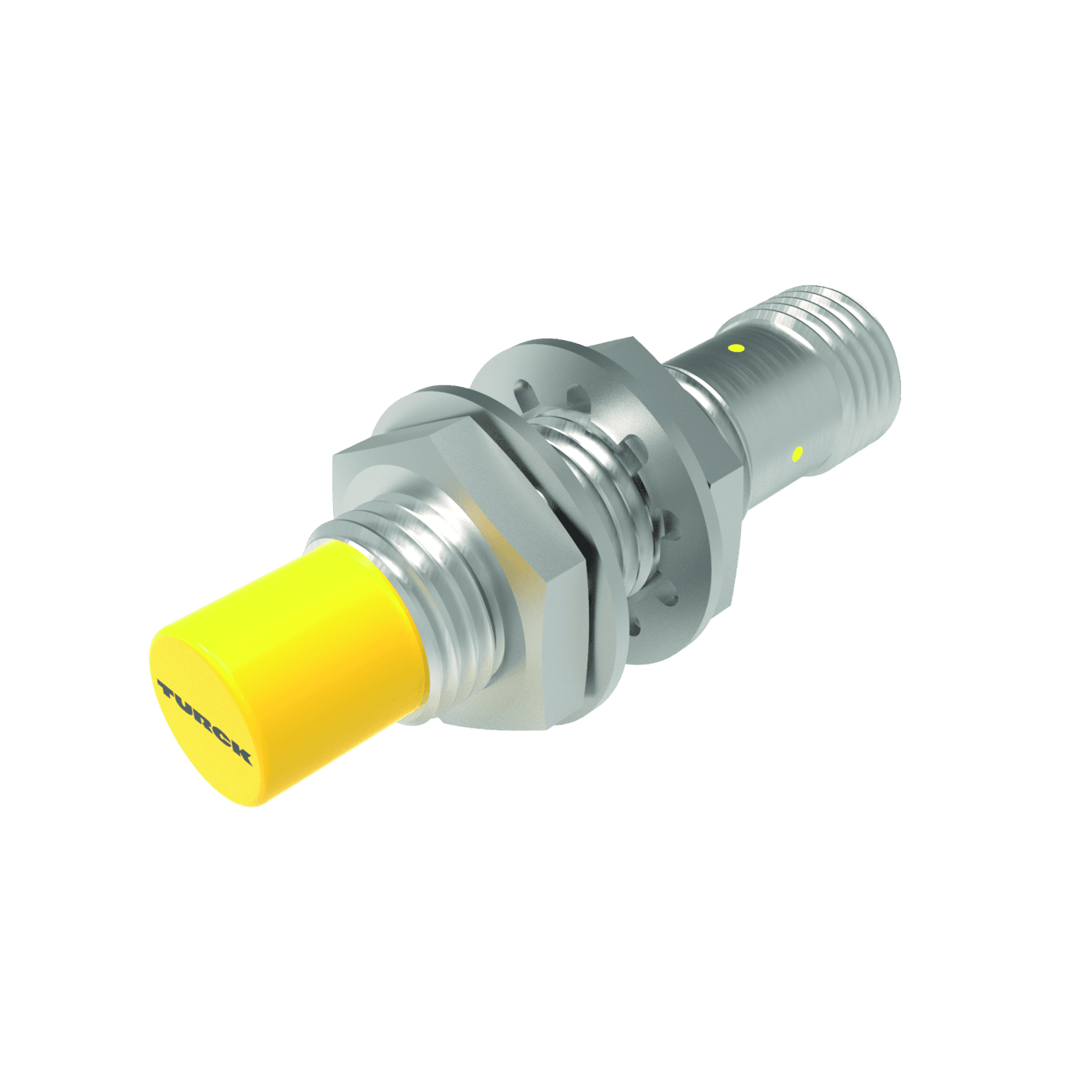

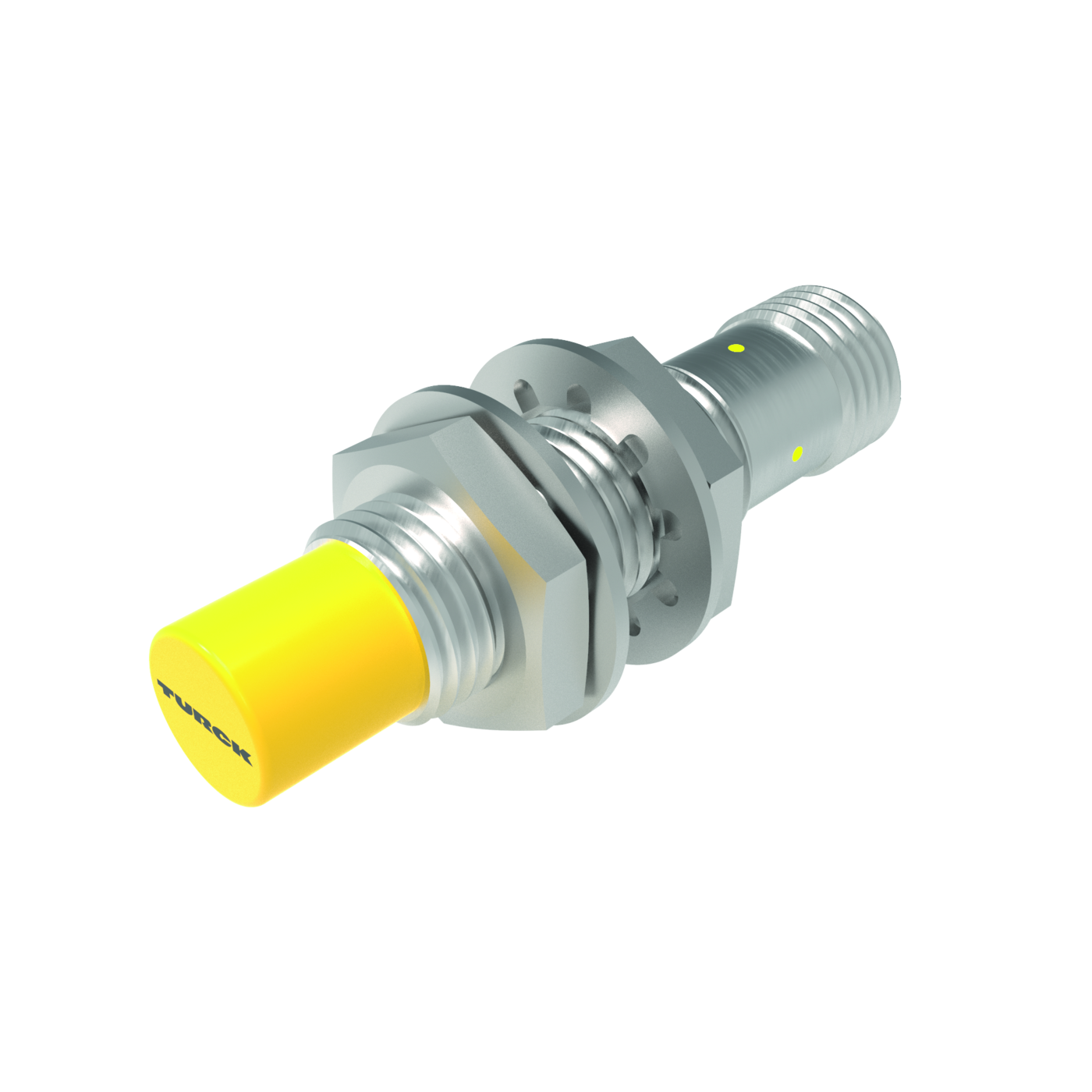

NI4-M12-AD6X-H1141
Order ID no. 100018017
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
2-wire
Design
Threaded barrel
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Non-flush
Operating voltage
DC
Rated switching distance (mm)
4
Construction size
M12 x 1
Base unit
PCE
EAN/UPC code
4047101523089
Gross weight
30
Height
30
Length
160
Net weight
30
Dimension unit
MMT
Weight unit
GRM
Volume
0.768
Volume unit
DMQ
Width
160
Dimensions
12 mm x 52 mm
Housing surface
Chrome-plated
Quality active face
PA12-GF30
Switching frequency (kHz)
1
Key Features
Electrical connection
Connector
Mounting conditions
Non-flush
Output function
2-wire
Rated switching distance (mm)
4
In Stock
Price Group
E1
List Price
€35.75
home
Turck-Shop
Sensors
Inductive Sensors
NI4-M12-AD6X-H1141
Item Total
€35.75
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
