NI15-M30-AD6X-H1141 | TURCK - Your Global Automation Partner
Inductive Sensor
NI15-M30-AD6X-H1141
Order ID no. 100018023
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
2-wire
Design
Threaded barrel
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Non-flush
Operating voltage
DC
Rated switching distance (mm)
15
Construction size
M30 x 1.5
Base unit
PCE
EAN/UPC code
4047101523140
Gross weight
110
Height
40
Length
180
Net weight
110
Dimension unit
MMT
Weight unit
GRM
Volume
1.224
Volume unit
DMQ
Width
170

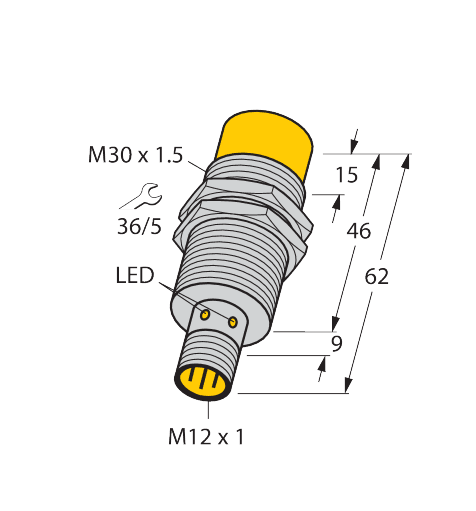

Dimensions
30 mm x 62 mm
Housing surface
Chrome-plated
Quality active face
PA12-GF30
Switching frequency (kHz)
0.5
Key Features
Electrical connection
Connector
Mounting conditions
Non-flush
Output function
2-wire
Rated switching distance (mm)
15
In Stock
Price Group
E1
List Price
€52.25
