BI15-CP40-Y1X/S97 | TURCK - Your Global Automation Partner
Inductive Sensor
BI15-CP40-Y1X/S97
Order ID no. 10397
home
Home
Loading...
Technical Data
Protection class
IP67
Output function
NAMUR
Design
Rectangular
Electrical connection
Terminal chamber
Housing material
Plastic
Housing quality
PBT-GF30-V0
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
15
Construction size
114 x 40 x 40 mm
Base unit
PCE
EAN/UPC code
4047101063073
Gross weight
227
Height
40
Length
120
Net weight
227
Dimension unit
MMT
Weight unit
GRM
Volume
192
Volume unit
CMQ
Width
40

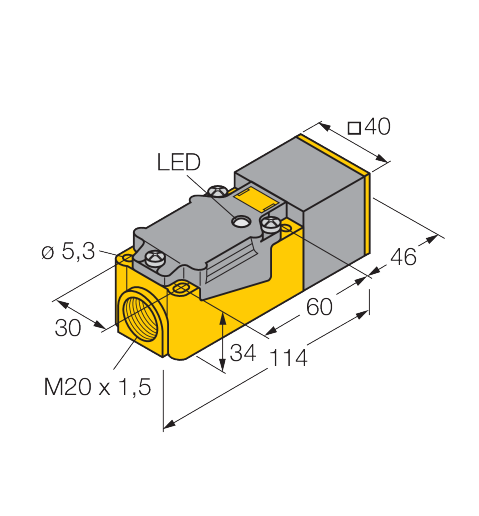

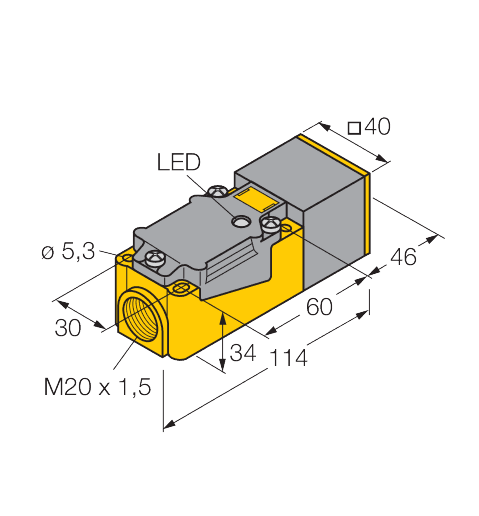

Dimensions
114 mm x 40 mm x 40 mm
Housing surface
Black
Quality active face
PBT-GF30-V0
Switching frequency (kHz)
0.15
Key Features
Electrical connection
Terminal chamber
Mounting conditions
Flush
Output function
NAMUR
Rated switching distance (mm)
15
In Stock
Price Group
E1
List Price
€115.17
