NI4-M12-AZ31X | TURCK - Your Global Automation Partner
Inductive Sensor
NI4-M12-AZ31X
Order ID no. 13032
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
2-wire
Cable length (m)
2
Design
Threaded barrel
Electrical connection
Cable
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Non-flush
Operating voltage
AC
Rated switching distance (mm)
4
Construction size
M12 x 1
Base unit
PCE
EAN/UPC code
4047101138085
Gross weight
101
Height
20
Length
160
Net weight
101
Dimension unit
MMT
Weight unit
GRM
Volume
352
Volume unit
CMQ
Width
110

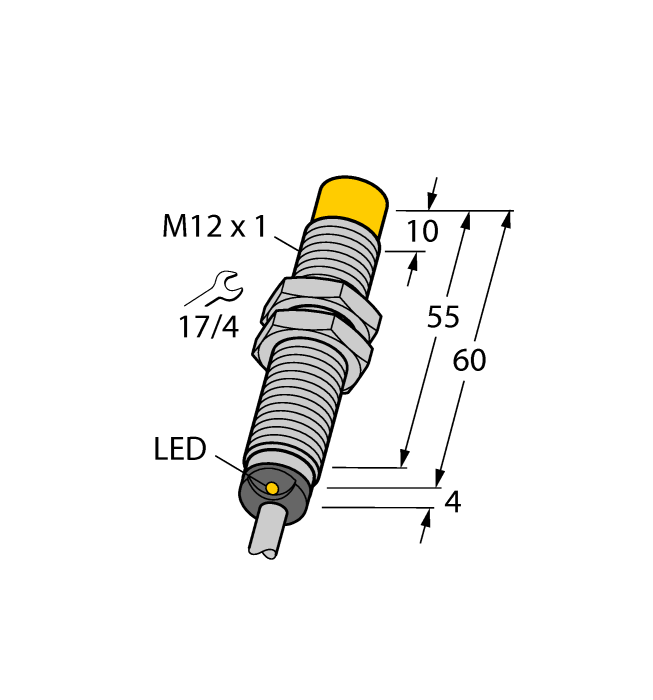

Dimensions
12 mm x 64 mm
Housing surface
Chrome-plated
Quality active face
PA12-GF30
Switching frequency (kHz)
0.02
Key Features
Electrical connection
Cable
Mounting conditions
Non-flush
Output function
2-wire
Rated switching distance (mm)
4
home
Turck-Shop
Sensors
Inductive Sensors
NI4-M12-AZ31X
In Stock
Price Group
E1
List Price
€149.05
Item Total
€149.05
