Inductive Sensor
NI20NF-CP40-FZ3X2
Order ID no. 13284
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
Connection programmable
Output function
2-wire
Design
Rectangular
Electrical connection
Terminal chamber
Housing material
Plastic
Housing quality
PBT-GF30-V0
Ambient temperature min. (°C)
0
Ambient temperature max. (°C)
60
Mounting conditions
Non-flush
Operating voltage
AC
Rated switching distance (mm)
20

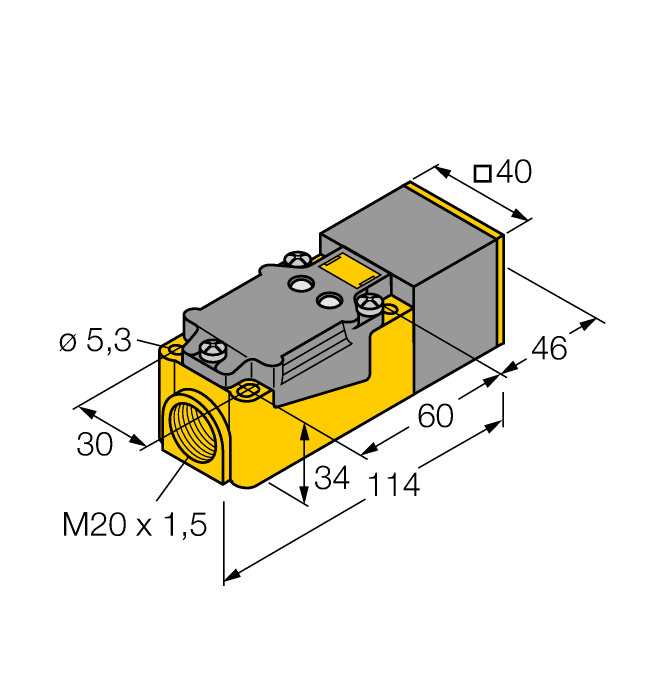

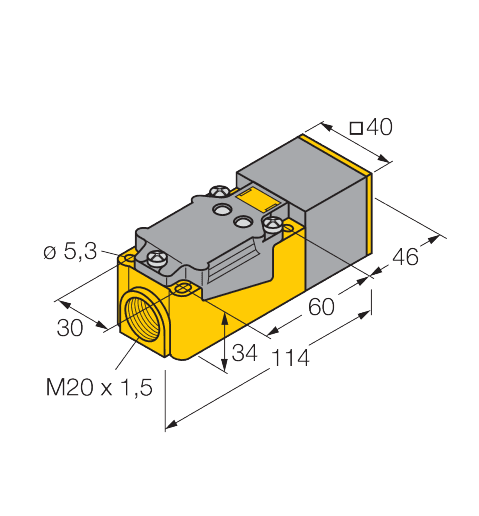

Construction size
114 x 40 x 40 mm
Base unit
PCE
Special features
Selective NF
EAN/UPC code
4047101000061
Gross weight
236
Height
40
Length
120
Net weight
236
Dimension unit
MMT
Weight unit
GRM
Volume
192
Volume unit
CMQ
Width
40
Dimensions
114 mm x 40 mm x 40 mm
Housing surface
Black
Quality active face
PBT-GF30-V0
Switching frequency (kHz)
0.02
Key Features
Electrical connection
Terminal chamber
Mounting conditions
Non-flush
Output function
2-wire
Rated switching distance (mm)
20
In Stock
Price Group
E1
List Price
€197.89
