BI40-CP80-FZ3X2 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

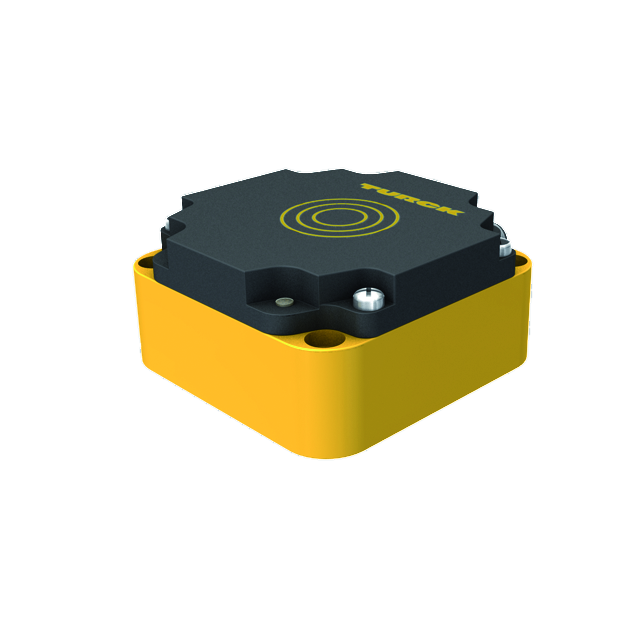

Inductive Sensor
BI40-CP80-FZ3X2
Order ID no. 13404
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
Connection programmable
Output function
2-wire
Design
Rectangular
Electrical connection
Terminal chamber
Housing material
Plastic
Housing quality
PBT-GF30-V0
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
AC
Rated switching distance (mm)
40
Construction size
80 x 80 x 41 mm
Base unit
PCE
EAN/UPC code
4047101066739
Gross weight
306
Height
40
Length
100
Net weight
306
Dimension unit
MMT
Weight unit
GRM
Volume
320
Volume unit
CMQ
Width
80
Dimensions
80 mm x 80 mm x 41 mm
Quality active face
PBT-GF30-V0
Switching frequency (kHz)
0.01
Key Features
Electrical connection
Terminal chamber
Mounting conditions
Flush
Output function
2-wire
Rated switching distance (mm)
40
In Stock
Price Group
E1
List Price
€297.88
