DNI30U-K40SR-AP4X2 | TURCK - Your Global Automation Partner
Inductive Sensor
DNI30U-K40SR-AP4X2
Order ID no. 1500202
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Design
Smooth barrel
Electrical connection
Terminal chamber
Housing material
Plastic
Housing quality
ABS
Ambient temperature min. (°C)
-30
Ambient temperature max. (°C)
85
Mounting conditions
Non-flush
Operating voltage
DC
Rated switching distance (mm)
30
Construction size
Ø 40 mm
Base unit
PCE
Special features
Rotation speed monitoring
EAN/UPC code
4047101069686
Gross weight
168
Height
20
Length
150
Net weight
168
Dimension unit
MMT
Weight unit
GRM
Volume
540
Volume unit
CMQ
Width
180

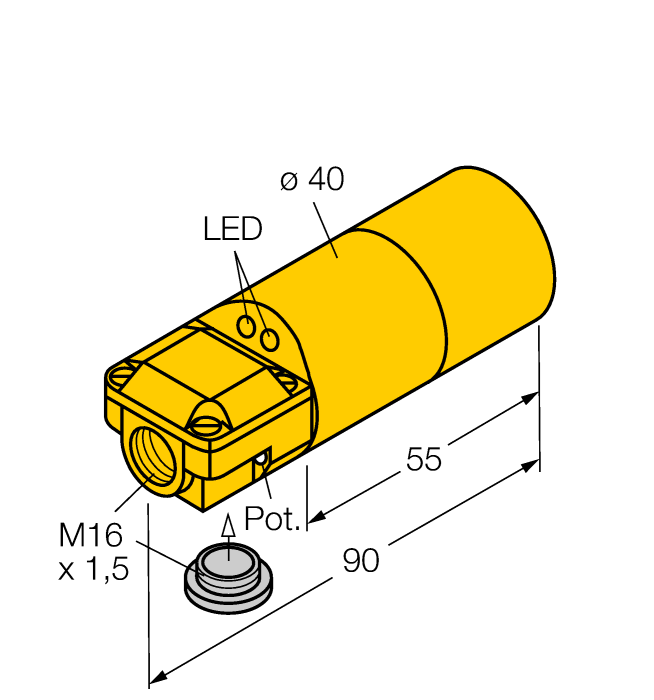

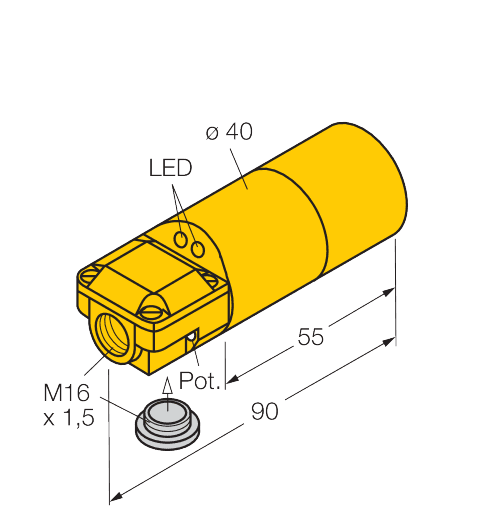

Dimensions
40 mm x 90 mm
Housing surface
Yellow
Quality active face
ABS
Key Features
Electrical connection
Terminal chamber
Mounting conditions
Non-flush
Output function
PNP
Rated switching distance (mm)
30
In Stock
Price Group
E1
List Price
€263.34
