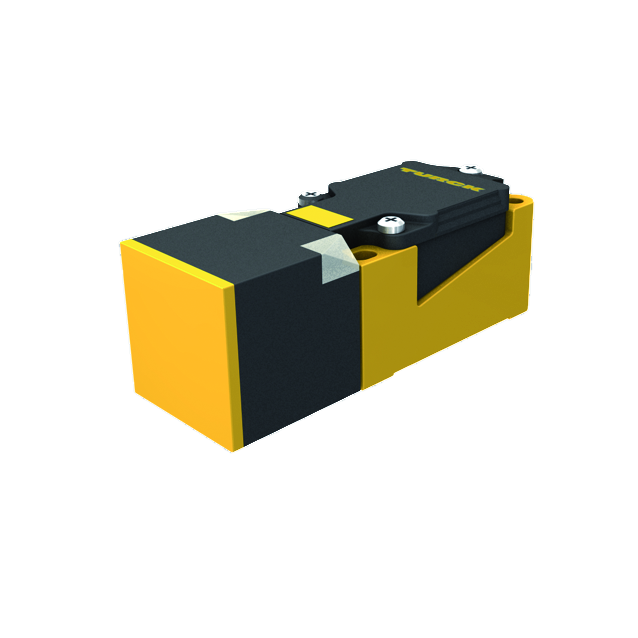

Inductive Sensor
BI15-CP40-VP4X2/S97
Order ID no. 15058
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
Complementary contact
Output function
PNP
Design
Rectangular
Electrical connection
Terminal chamber
Housing material
Plastic
Housing quality
PBT-GF30-V0
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
15

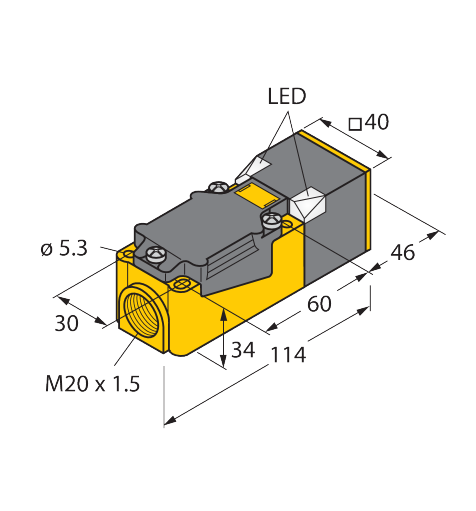

Construction size
114 x 40 x 40 mm
Base unit
PCE
EAN/UPC code
4047101070040
Gross weight
233
Height
40
Length
120
Net weight
233
Dimension unit
MMT
Weight unit
GRM
Volume
192
Volume unit
CMQ
Width
40
Dimensions
114 mm x 40 mm x 40 mm
Housing surface
Black
Quality active face
PBT-GF30-V0
Switching frequency (kHz)
0.15
Key Features
Electrical connection
Terminal chamber
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
15
In Stock
Price Group
E1
List Price
€170.28
