NI50U-CK40-VP4X2-H1141/3GD | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Inductive Sensor
NI50U-CK40-VP4X2-H1141/3GD
Order ID no. 1514120
home
Home
Loading...
Technical Data
Protection class
IP68
Switching element function
Complementary contact
Output function
PNP
Design
Rectangular
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
PBT-GF20-V0
Ambient temperature min. (°C)
-30
Ambient temperature max. (°C)
85
Mounting conditions
Non-flush
Operating voltage
DC
Rated switching distance (mm)
50
Construction size
65 x 40 x 40 mm
Base unit
PCE
Special features
uprox+, Factor 1, Resistant to magnetic fields
EAN/UPC code
4047101071016
Gross weight
117
Height
40
Length
100
Net weight
117
Dimension unit
MMT
Weight unit
GRM
Volume
400
Volume unit
CMQ
Width
100

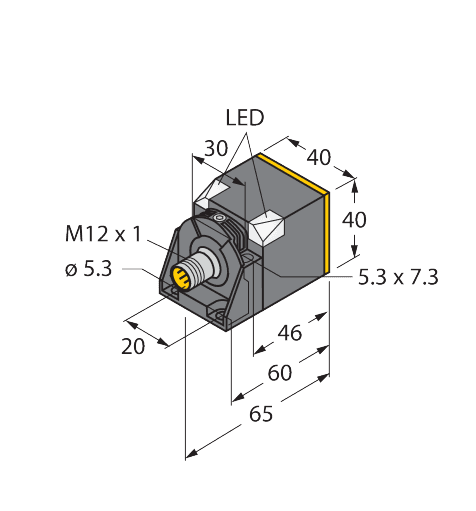

Dimensions
65 mm x 40 mm x 40 mm
Housing surface
Black
Quality active face
PA12-GF30
Switching frequency (kHz)
0.25
Key Features
Electrical connection
Connector
Mounting conditions
Non-flush
Output function
PNP
Rated switching distance (mm)
50
In Stock
Price Group
E2
List Price
€129.87
