WI40-M18-LIU5 | TURCK - Your Global Automation Partner
Inductive Sensor
WI40-M18-LIU5
Order ID no. 1536603
home
Home
Loading...
Technical Data
Protection class
IP67
Output function
Analog output
Cable length (m)
2
Cable color
Gray
Design
Threaded barrel
Electrical connection
Cable
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Non-flush
Operating voltage
DC
Measuring range (mm)
0
Construction size
M18 x 1
Measuring range
0…40 mm
Base unit
PCE
EAN/UPC code
4047101072792
Gross weight
143
Height
20
Length
100
Net weight
143
Dimension unit
MMT
Weight unit
GRM
Volume
200
Volume unit
CMQ
Width
100

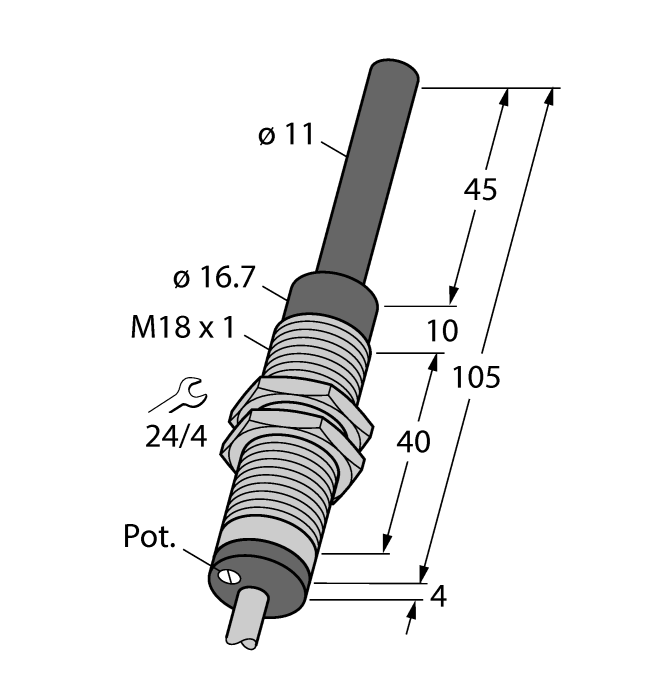

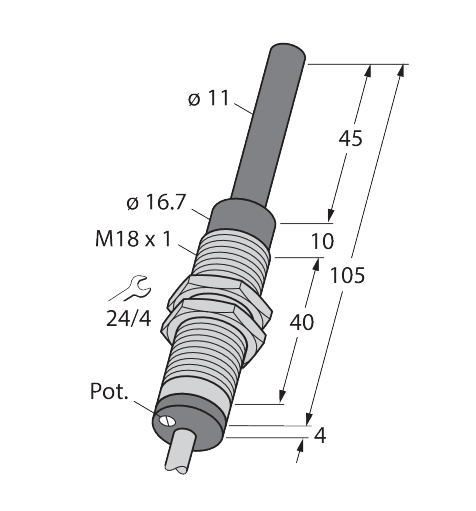

Dimensions
18 mm x 109 mm
Housing surface
Chrome-plated
Quality active face
PVC rigid
Key Features
Electrical connection
Cable
Measuring range
0…40 mm
Mounting conditions
Non-flush
Output function
Analog output
