BI20-G47-AP4X | TURCK - Your Global Automation Partner
Inductive Sensor
BI20-G47-AP4X
Order ID no. 15645
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Cable length (m)
2
Design
Threaded barrel
Electrical connection
Cable
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
20
Construction size
Pg 36
Base unit
PCE
EAN/UPC code
4047101074901
Gross weight
362
Height
60
Length
150
Net weight
362
Dimension unit
MMT
Weight unit
GRM
Volume
810
Volume unit
CMQ
Width
90

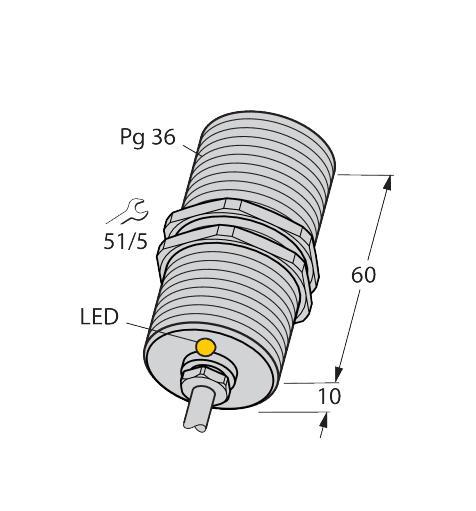

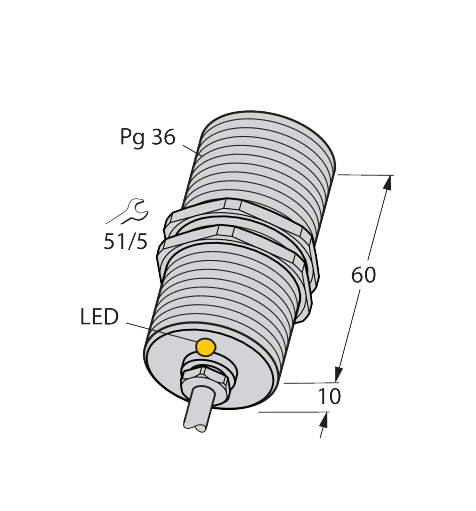

Dimensions
47 mm x 70 mm
Housing surface
Chrome-plated
Quality active face
PA12-GF30
Switching frequency (kHz)
0.1
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
20
In Stock
Price Group
E1
List Price
€173.80
