NI15-P30SR-VP4X2 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Inductive Sensor
NI15-P30SR-VP4X2
Order ID no. 15653
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
Complementary contact
Output function
PNP
Design
Threaded barrel
Electrical connection
Terminal chamber
Housing material
Plastic
Housing quality
ABS
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Non-flush
Operating voltage
DC
Rated switching distance (mm)
15
Construction size
M30 x 1.5
Base unit
PCE
EAN/UPC code
4047101075076
Gross weight
125
Height
40
Length
100
Net weight
125
Dimension unit
MMT
Weight unit
GRM
Volume
400
Volume unit
CMQ
Width
100

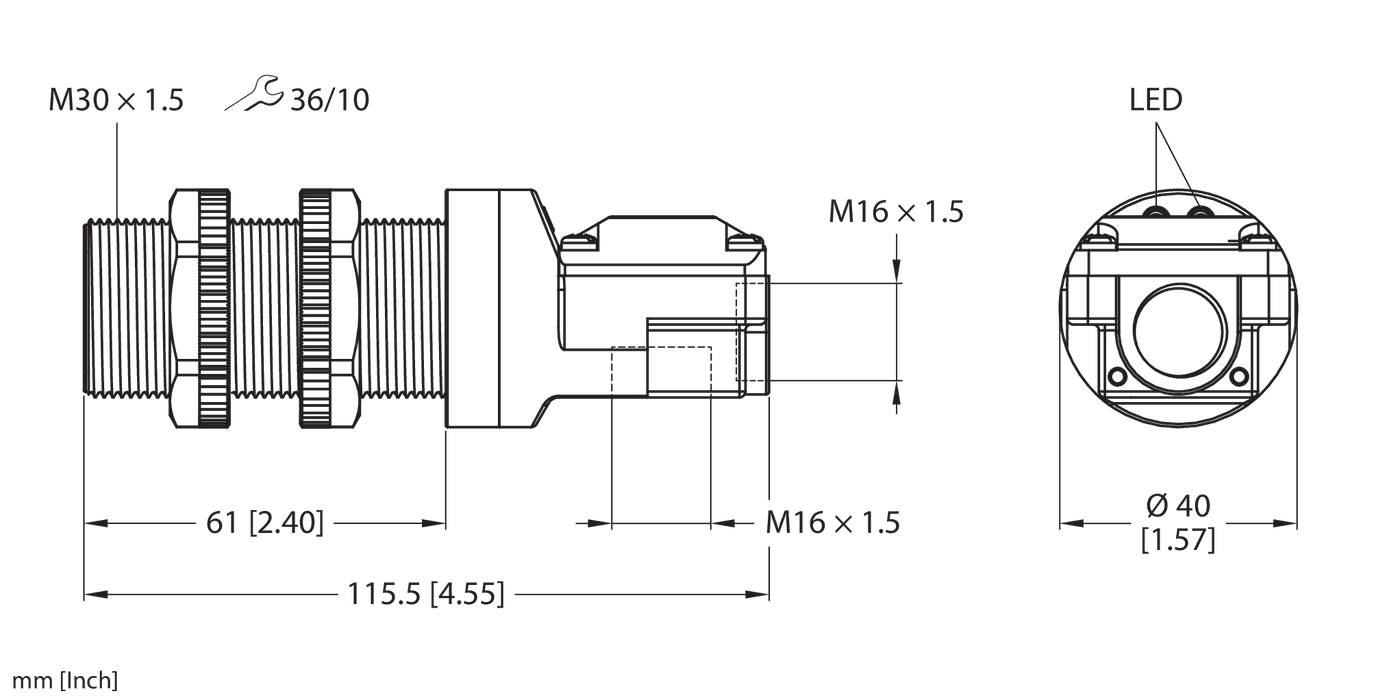

Dimensions
30 mm x 115 mm
Housing surface
Black
Quality active face
ABS
Switching frequency (kHz)
0.5
Key Features
Electrical connection
Terminal chamber
Mounting conditions
Non-flush
Output function
PNP
Rated switching distance (mm)
15
In Stock
Price Group
E1
List Price
€139.81
Item Total
€139.81
Quantity
−
+
add_shopping_cart
Add to Cart
