NI40-G47SR-VN4X2 | TURCK - Your Global Automation Partner
Inductive Sensor
NI40-G47SR-VN4X2
Order ID no. 15750
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
Complementary contact
Output function
NPN
Design
Threaded barrel
Electrical connection
Terminal chamber
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Non-flush
Operating voltage
DC
Rated switching distance (mm)
40
Construction size
Pg 36
Base unit
PCE
EAN/UPC code
4047101076424
Gross weight
282
Height
60
Length
150
Net weight
282
Dimension unit
MMT
Weight unit
GRM
Volume
810
Volume unit
CMQ
Width
90

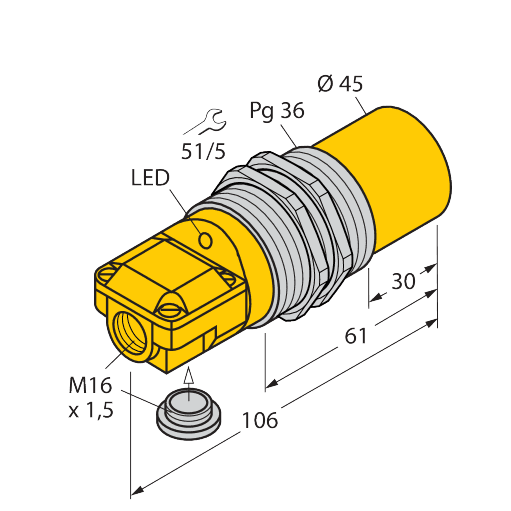

Dimensions
47 mm x 106 mm
Housing surface
Chrome-plated
Quality active face
PA12-GF30
Switching frequency (kHz)
0.1
Key Features
Electrical connection
Terminal chamber
Mounting conditions
Non-flush
Output function
NPN
Rated switching distance (mm)
40
