RI360P1-DSU35-2UP6X4-H1151 | TURCK - Your Global Automation Partner
Inductive Angle Sensor
RI360P1-DSU35-2UP6X4-H1151
Order ID no. 1590867
home
Home
Loading...
Technical Data
Protection class
IP68, IP69K
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
75
Design
Dual sensor for rotary actuators
Mounting conditions
Non-flush
Electrical connection
Connector
Operating voltage
DC
Switching element function
NO/NC
Output function
2 × PNP
Housing material
Plastic
Connector type
M12 × 1
Housing quality
PP-GF30
Construction size

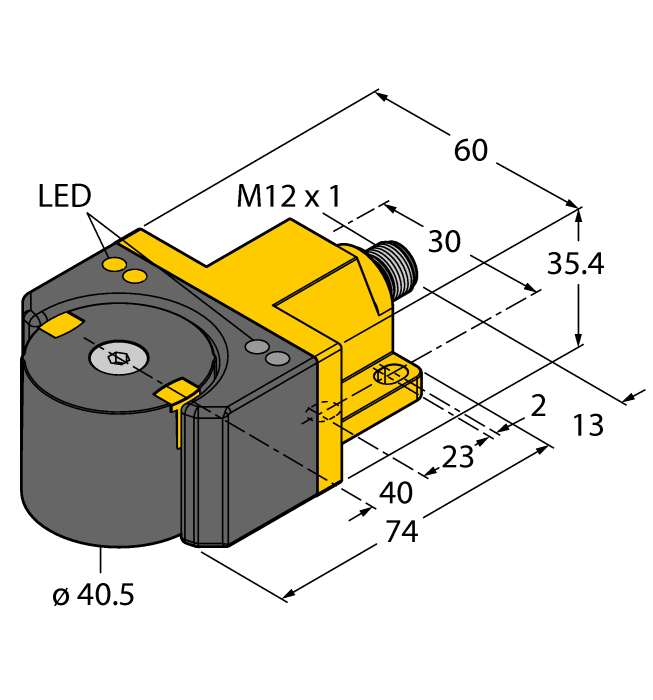

74 x 60 x 35.4 mm
Measuring range
0…360°
Output type
Absolute singleturn
Flange type
Flange without mounting element
Measuring principle
Inductive
Key Features
Electrical connection
Connector
Measuring range
0…360°
Mounting conditions
Non-flush
Output function
2 × PNP
In Stock
Price Group
G1
List Price
€274.92
