RI360P1-DSU35TC-ELI-EXI | TURCK - Your Global Automation Partner
Inductive Angle Sensor
RI360P1-DSU35TC-ELI-EXI
Order ID no. 1593015
In Stock
Price Group
G1
List Price
€319.94
home
Home
Loading...
Technical Data
Protection class
IP68, IP69K
Output function
Analog output
Design
Dual sensor for rotary actuators
Electrical connection
Terminal chamber
Housing material
Plastic
Housing quality
PP-GF30
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Measuring principle
Inductive
Mounting conditions
Non-flush
Operating voltage
DC
Output type
Absolute singleturn
Flange type
Flange without mounting element

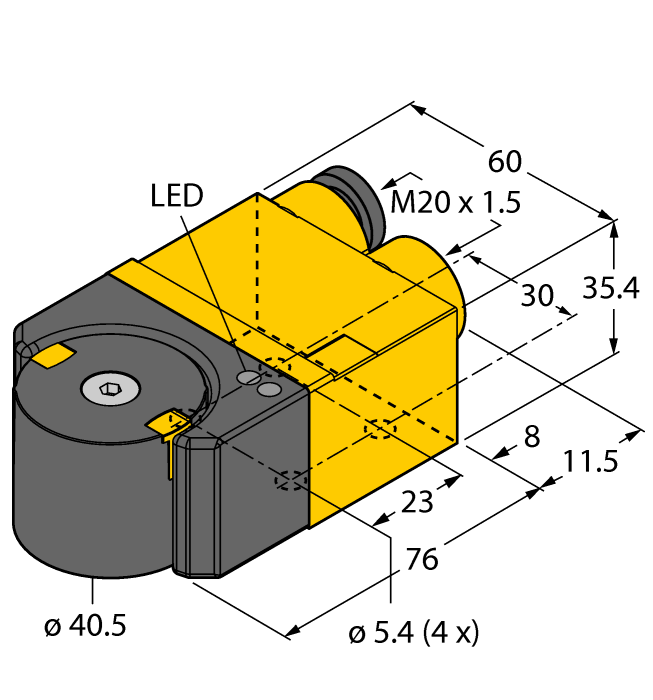

Construction size
76 x 60 x 35.4 mm
Measuring range
0…360°
Key Features
Electrical connection
Terminal chamber
Measuring range
0…360°
Mounting conditions
Non-flush
Output function
Analog output
