Inductive Sensor

NI20U-MT30-AN6X-H1141

Order ID no. 1646250

Item Total€106.70

Quantity

Protection class: IP68
Switching element function: NO contact
Output function: NPN
Design: Threaded barrel
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Metal
Housing quality: CuZn
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 85
Mounting conditions: Non-flush
Operating voltage: DC
Rated switching distance (mm): 20
Construction size: M30 x 1.5
Base unit: PCE
Special features: uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated
EAN/UPC code: 4047101135176
Gross weight: 114
Height: 30
Length: 100
Net weight: 114
Dimension unit: MMT
Weight unit: GRM
Volume: 300
Volume unit: CMQ
Width: 100

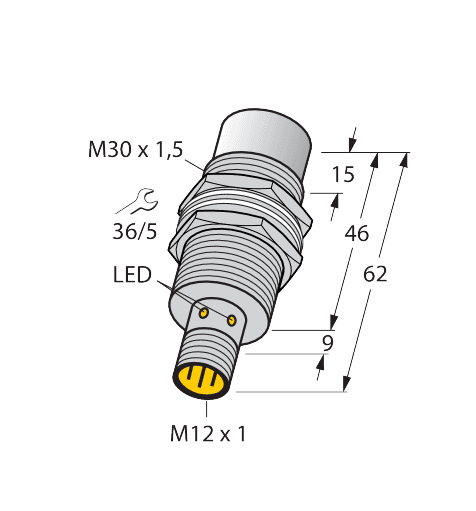

Dimensions: 62 mm x
Housing surface: PTFE-coated
Quality active face: PBT
Switching frequency (kHz): 1
