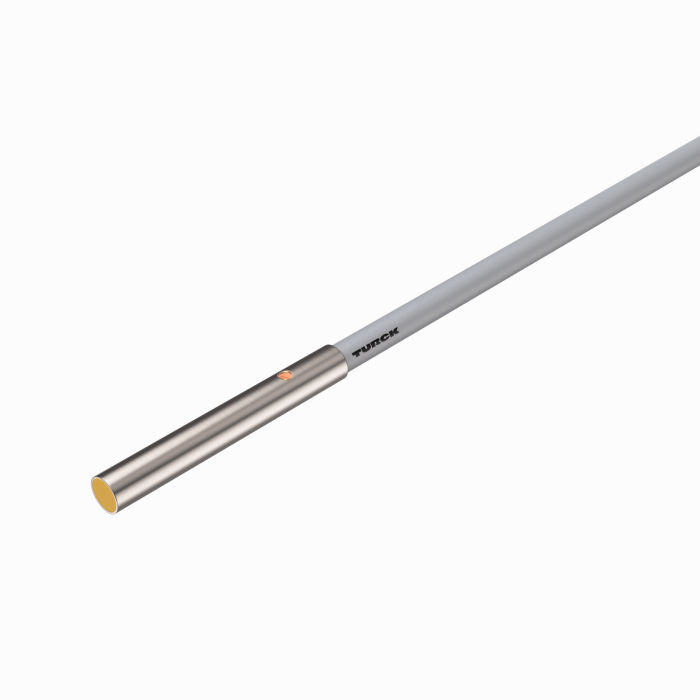

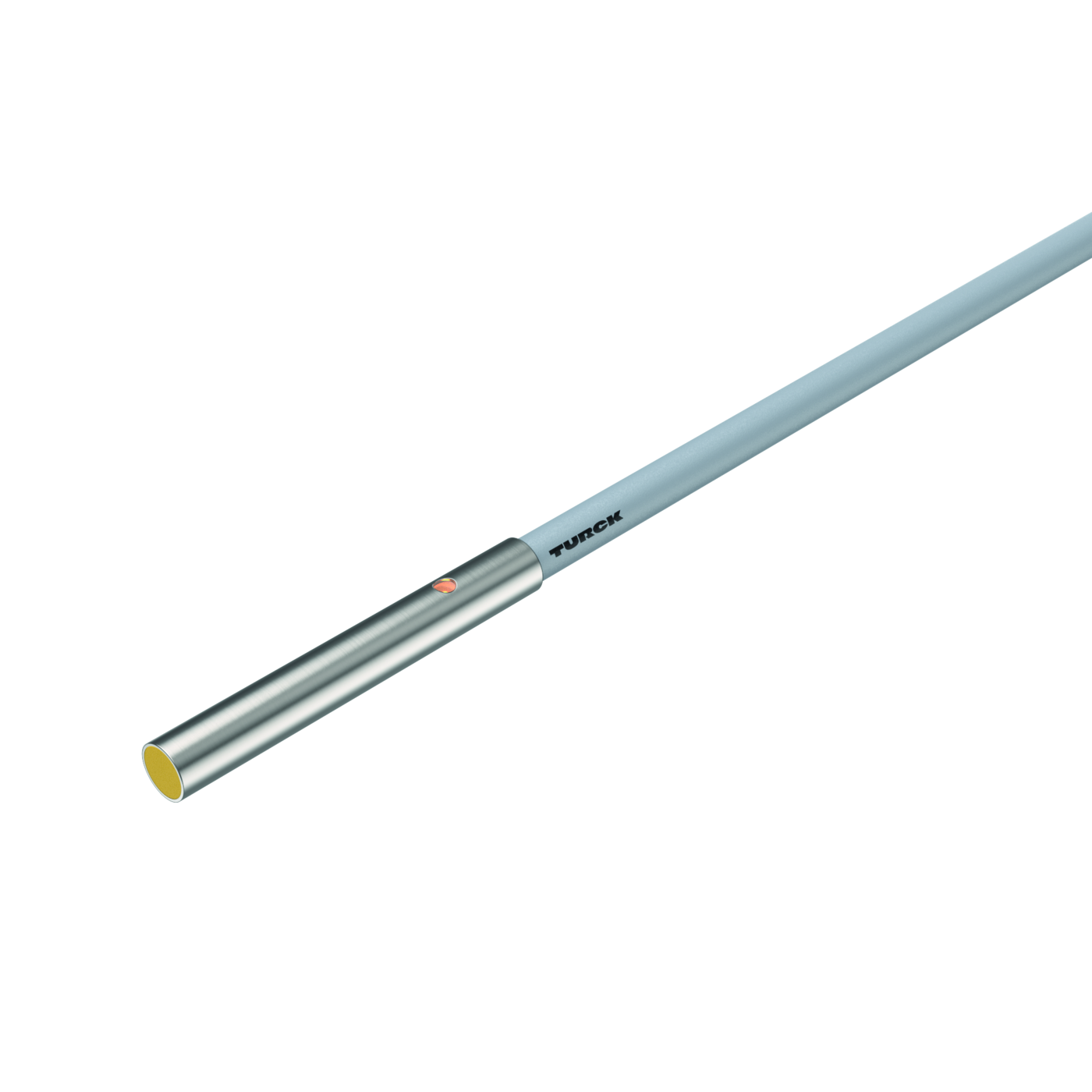

Inductive Sensor
BI1-EH04-AP6X
Order ID no. 4609540
In Stock
Price Group
E1
List Price
€90.97
Item Total
€90.97
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Cable length (m)
2
Cable color
Gray
Design
Smooth barrel
Electrical connection
Cable
Housing material
Stainless steel
Housing quality
1.4305 (AISI 303)
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
1
Construction size
Ø 4 mm
Base unit
PCE
EAN/UPC code
4047101000320
Gross weight
34
Height
20
Length
120
Net weight
34
Dimension unit
MMT
Weight unit
GRM
Volume
192
Volume unit
CMQ
Width
80

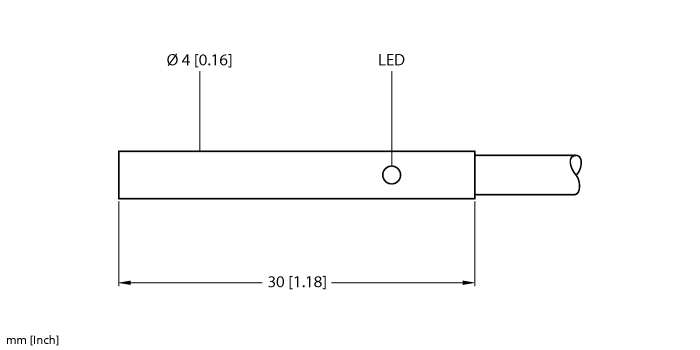

Dimensions
4 mm x 30 mm
Quality active face
PA6.6
Switching frequency (kHz)
3
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
1
