BI1-EG05-AN6X | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Inductive Sensor

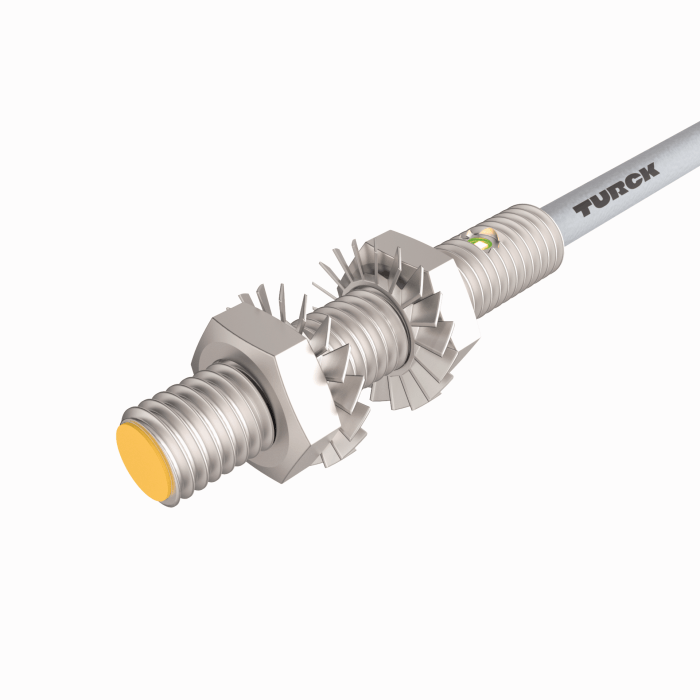

BI1-EG05-AN6X
Order ID no. 4609840
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
NPN
Cable length (m)
2
Cable color
Gray
Design
Threaded barrel
Electrical connection
Cable
Housing material
Stainless steel
Housing quality
1.4305 (AISI 303)
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
1
Construction size
M5 x 0.5
Base unit
PCE
EAN/UPC code
4047101154948
Gross weight
36
Height
10
Length
150
Net weight
36
Dimension unit
MMT
Weight unit
GRM
Volume
135
Volume unit
CMQ
Width
90

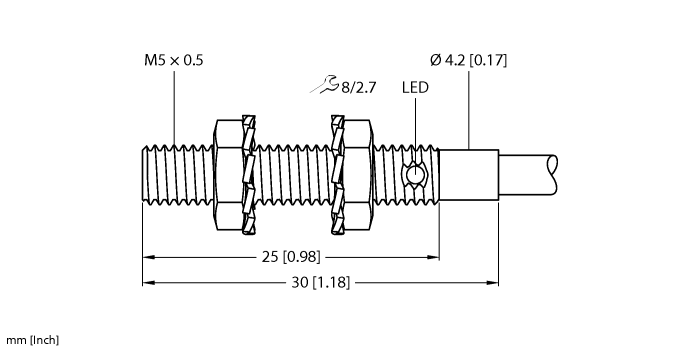

Dimensions
5 mm x 30 mm
Quality active face
PA6.6
Switching frequency (kHz)
3
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
1
In Stock
Price Group
E1
List Price
€90.97
Item Total
€90.97
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Inductive Sensors
BI1-EG05-AN6X
Contact Support
